Removal [02/2019 - 08/2020]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 26 [02/2019 - 10/2019] , or refer to PROCEDURE - Step 26 [10/2019 - 08/2020]

  2. REMOVE IGNITION COIL ASSEMBLY

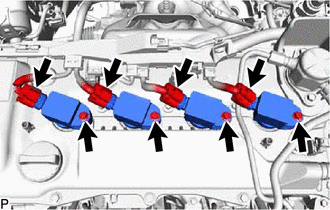

    1. GTY868589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disconnect the 4 ignition coil assembly connectors.

    2. Remove the 4 bolts and 4 ignition coil assemblies from the cylinder head cover sub-assembly.
      NOTE:

      If a ignition coil assembly has been struck or dropped, replace it.

  3. REMOVE SPARK PLUG

    Refer to PROCEDURE - Step 3
