Removal [11/2018 - 06/2020]: Procedure

WARNING: This page is about a different variant/trim than selected.

REMOVE CAM TIMING OIL CONTROL SOLENOID ASSEMBLY
Refer to REMOVAL [11/2018 - ]

REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (EXHAUST CAMSHAFT TIMING GEAR BOLT ASSEMBLY)

Using a 5 mm hexagon socket wrench, remove the bolt.

NOTE:

Do not remove the other 2 bolts.

HINT:

If it is difficult to loosen the bolt due to the tools contacting the vehicle body or other parts, rotate the crankshaft to move the bolt to a position where it can be removed easily.

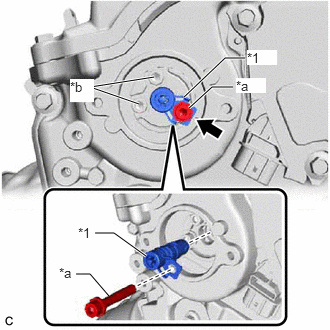

*1	Camshaft Timing Oil Control Valve Assembly (Exhaust Camshaft Timing Gear Bolt Assembly)
*a	Bolt
*b	Do not remove

Remove the camshaft timing oil control valve assembly (exhaust camshaft timing gear bolt assembly) from the camshaft timing exhaust gear assembly.
