Installation [11/2018 - 06/2020]: Procedure

WARNING: This page is about a different variant/trim than selected.

INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (EXHAUST CAMSHAFT TIMING GEAR BOLT ASSEMBLY)

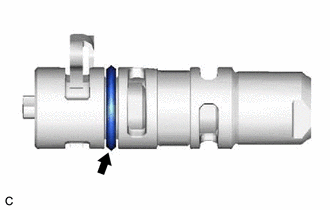

Apply a light coat of engine oil to the O-ring of the camshaft timing oil control valve assembly (exhaust camshaft timing gear bolt assembly).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

If reusing the camshaft timing oil control valve assembly (exhaust camshaft timing gear bolt assembly), be sure to inspect the O-ring.

Temporary install the camshaft timing oil control valve assembly (exhaust camshaft timing gear bolt assembly) to the camshaft timing exhaust gear assembly.
NOTE:
If the camshaft timing oil control valve assembly (exhaust camshaft timing gear bolt assembly) has been struck or dropped, replace it.
Using a 5 mm hexagon socket wrench, install the camshaft timing oil control valve assembly (exhaust camshaft timing gear bolt assembly) with the bolt.
Torque: 19 N.m (194 kgf/cm, 14 ft.lbf)

INSTALL CAM TIMING OIL CONTROL SOLENOID ASSEMBLY
Refer to INSTALLATION [11/2018 - ]
