Components [11/2018 - 06/2020]
WARNING: This page is about a different variant/trim than selected.

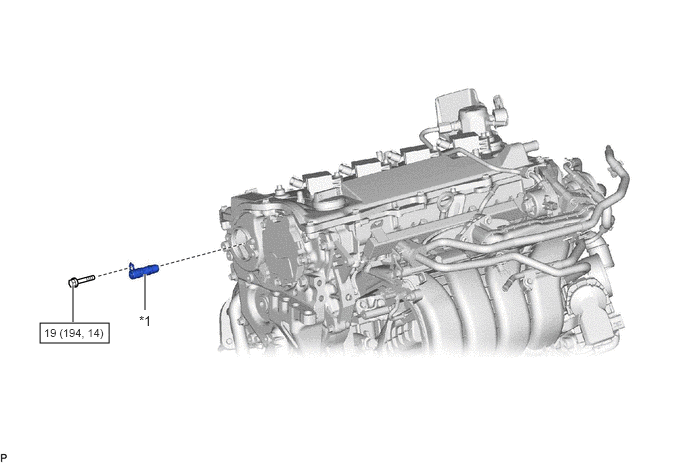

Fig 1: Camshaft Oil Control Valve Replacement Components With Torque Specifications [11/2018 - 06/2020]
| Callout | Description | Callout | Description |
| *1 | CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (EXHAUST CAMSHAFT TIMING GEAR BOLT ASSEMBLY) | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
