Removal [02/2019 - 08/2020]: Procedure
WARNING: This page is about a different variant/trim than selected.
- REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 26 [02/2019 - 10/2019]
, or refer to PROCEDURE - Step 26 [10/2019 - 08/2020]
- REMOVE AIR FUEL RATIO SENSOR
WARNING:
To prevent burns, do not touch the engine, exhaust manifold or other high temperature components while the engine is hot.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- for Sensor 1:

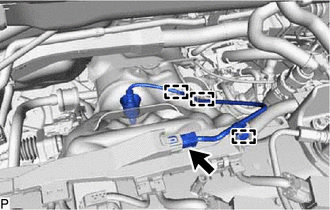

- Detach the 3 wire harness clamps.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disconnect the air fuel ratio sensor connector.

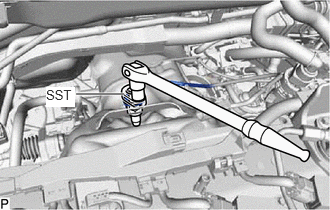

- Using SST, remove the air fuel ratio sensor from the exhaust manifold.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
NOTE:
If the air fuel ratio sensor has been struck or dropped, replace it.
- for Sensor 2:

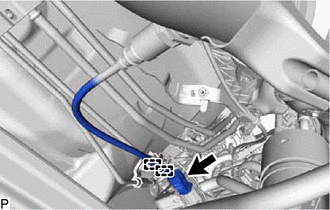

- Detach the 2 wire harness clamps.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disconnect the air fuel ratio sensor connector.

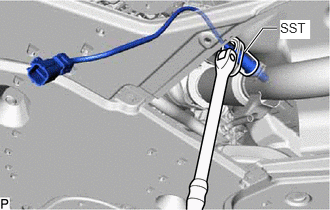

- Using SST, remove the air fuel ratio sensor from the front exhaust pipe assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
NOTE:
If the air fuel ratio sensor has been struck or dropped, replace it.
