Removal [11/2018 - 02/2019]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE STEERING WHEEL ASSEMBLY

    Refer to REMOVAL [11/2018 - 02/2019]

  2. REMOVE STEERING PAD SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 7

  3. REMOVE SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY)

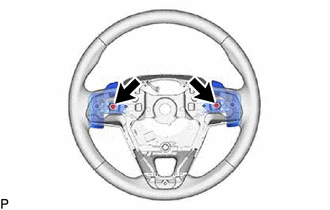

    1. Remove the 2 screws.
      GTY852917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 4 claws.

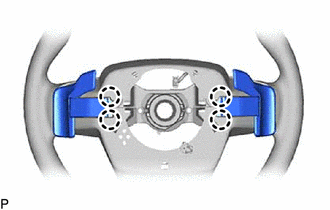

      GTY852921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

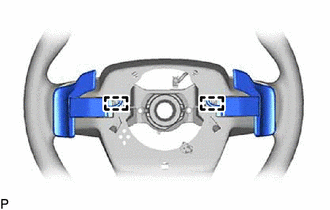

    3. GTY852920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disengage the 2 clamps to disconnect the No. 1 transmission shift switch assembly and No. 2 transmission shift switch assembly from the steering wheel assembly.

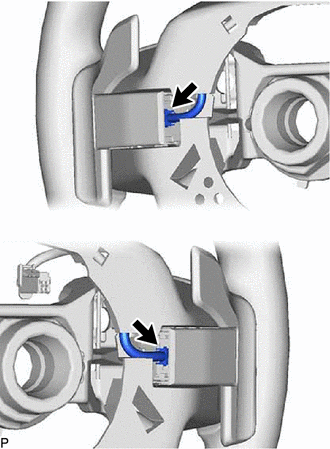

    4. GTY852908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disconnect the No. 1 transmission shift switch assembly connector and No. 2 transmission shift switch assembly connector to remove the No. 1 transmission shift switch assembly and No. 2 transmission shift switch assembly from the No. 1 switch wire.

  4. REMOVE NO. 1 SWITCH WIRE

    HINT:

    Perform this procedure only when replacement of the No. 1 switch wire is necessary.

    1. Disengage the 2 guides and remove the No. 1 switch wire from the steering wheel assembly.

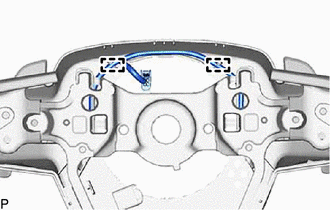

      GTY852907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
