Section 185 (Intuitive Parking Assist System (HV, W/ Parking Support Brake System) - Diagnostic Codes (1 Of 2))
>>
INTUITIVE PARKING ASSIST SYSTEM (for HV Model with Parking Support Brake System)
>>
DTC C1AE2-87: Ultrasonic Sensor (Front Left Center) Missing Message [02/2019 - 10/2023]
>>
Wiring Diagram
DTC C1AE2-87: Ultrasonic Sensor (Front Left Center) Missing Message [02/2019 - 10/2023]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

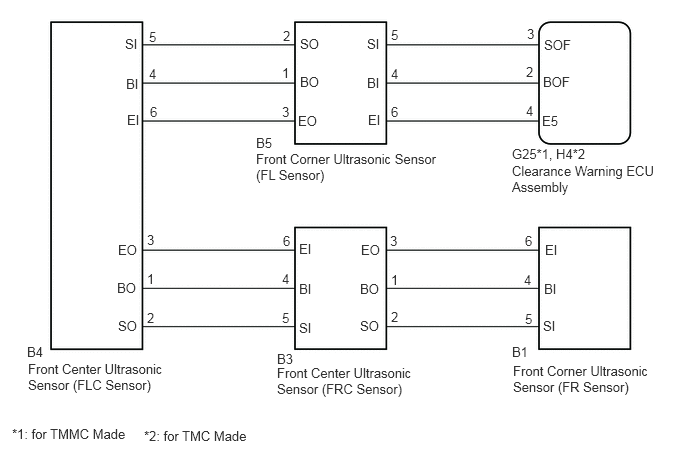

Fig 1: DTC C1AE2-87: Ultrasonic Sensor (Front Left Center) Missing Message [02/2019 - 10/2023]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
