Components [11/2018 - ]
WARNING: This page is about a different variant/trim than selected.

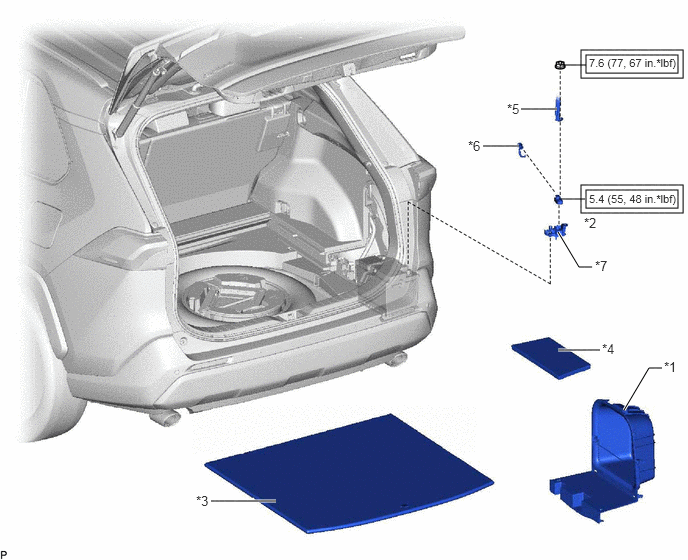

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BATTERY HOLE COVER | *2 | BATTERY STATE SENSOR ASSEMBLY |
| *3 | DECK BOARD ASSEMBLY | *4 | REAR NO. 2 FLOOR BOARD |
| *5 | FRAME WIRE | *6 | WIRE HARNESS |
| *7 | BATTERY CURRENT SENSOR HOLDER | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |
