Section 181 (Smart Key System (For Start, HV) - Diagnostic Codes (1 Of 2))
>>
SMART KEY SYSTEM (for Start Function, HV Model)
>>
DTC B2274: ACC Monitor Malfunction [11/2018 - ]
>>

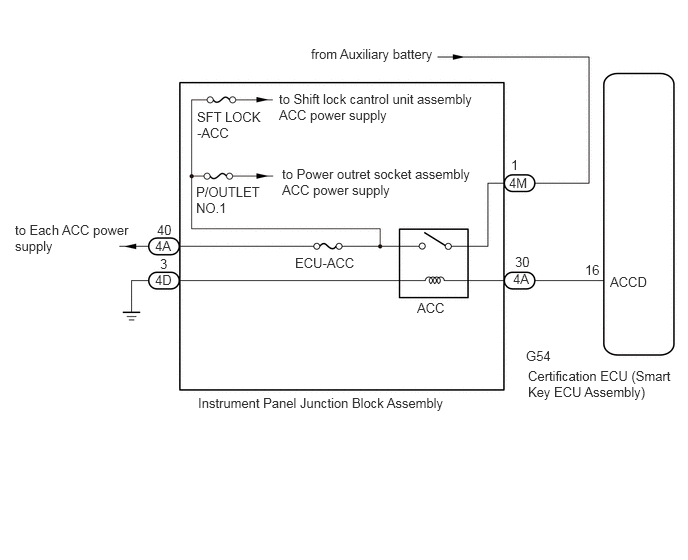

Wiring Diagram
DTC B2274: ACC Monitor Malfunction [11/2018 - ]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
