All Door Entry Lock/Unlock Functions and Wireless Functions do not Operate [11/2018 - 02/2019]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

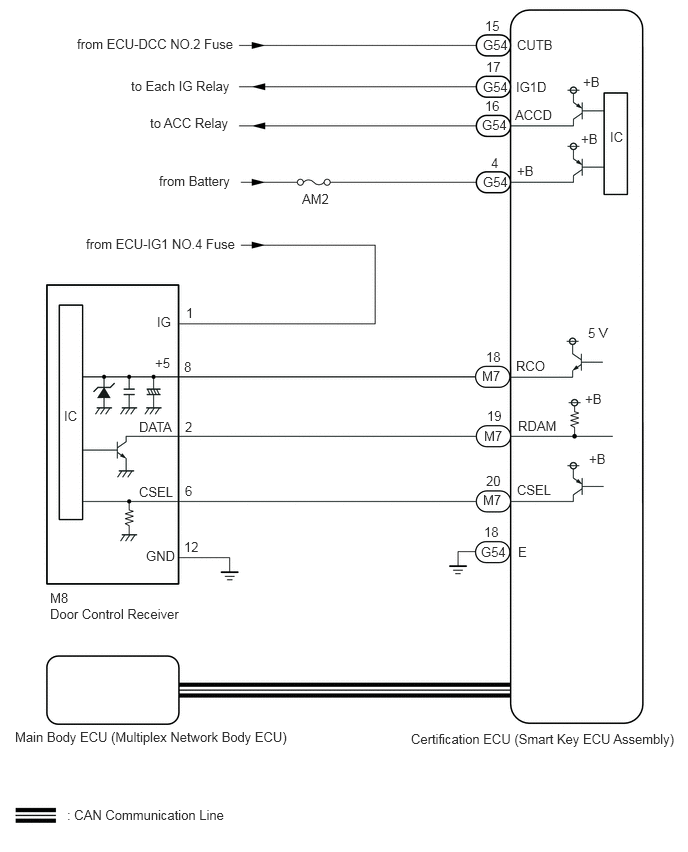

GTY883741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
