Operation Check [12/2021 - ]
WARNING: This page is about a different variant/trim than selected.
- INPUT SIGNAL CHECK
- Connect the Techstream to the DLC3.
- Check the steering pad switch assembly using the Data List function of the Techstream (cruise control main switch, -SET switch, +RES switch and CANCEL switch).
Refer to DATA LIST / ACTIVE TEST [12/2021 - ]
*a Steering Pad Switch Assembly *b +RES Switch *c Cruise Control Main Switch *d -SET Switch *e CANCEL Switch
- INSPECT CRUISE CONTROL MAIN SWITCH
- Turn the ignition switch to ON.
- Turn the dynamic radar cruise control system on using the cruise control main switch.
*a Steering Pad Switch Assembly *b Cruise Control Main Switch - Check that the cruise control indicator (vehicle-to-vehicle distance control mode) in the combination meter assembly illuminates and "Radar Ready" is displayed on the multi-information display.
*a Cruise Control Indicator
(Vehicle-to-vehicle Distance Control Mode)*b Multi-information Display - Turn the dynamic radar cruise control system off using the cruise control main switch. Check that the cruise control indicator (vehicle-to-vehicle distance control mode) in the combination meter assembly and "Radar Ready" on the multi-information display turn off.
- Turn the ignition switch off with the cruise control indicator (vehicle-to-vehicle distance control mode) in the combination meter assembly illuminated and "Radar Ready" on the multi-information display displayed. Turn the ignition switch back to ON and check that the cruise control indicator (vehicle-to-vehicle distance control mode) in the combination meter assembly and "Radar Ready" on the multi-information display are turned off.
- INSPECT MODE SELECT
- Turn the ignition switch to ON.
- Push and hold the cruise control main switch for 1.5 seconds or more with the dynamic radar cruise control system off to change to constant speed control mode.NOTE:
Do not push any other switches before pushing the cruise control main switch. If any other switches are pushed, turn the dynamic radar cruise control system off and repeat the above procedure.
*a Steering Pad Switch Assembly *b Cruise Control Main Switch - Check that the cruise control indicator (vehicle-to-vehicle distance control mode) in the combination meter assembly and "Radar Ready" on the multi-information display turn off and the cruise control indicator (constant speed control mode) illuminates.
*a Cruise Control Indicator
(Vehicle-to-vehicle Distance Control Mode)*b Multi-information Display *c Cruise Control Indicator
(Constant Speed Control Mode)
- INSPECT VEHICLE-TO-VEHICLE DISTANCE CONTROL SWITCH
- Turn the ignition switch to ON.
- Turn the dynamic radar cruise control system on using the cruise control main switch.
HINT:
When in constant speed control mode, the vehicle-to-vehicle distance cannot be changed.

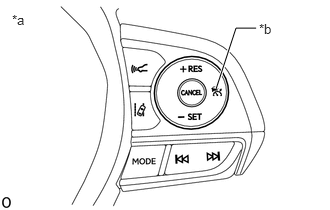

*a Steering Pad Switch Assembly *b Vehicle-to-vehicle Distance Control Switch *c Cruise Control Main Switch - Press the vehicle-to-vehicle distance control switch.
- Check that the indicator of the vehicle-to-vehicle distance, which is shown on the multi-information display in the combination meter assembly changes from long to middle to short in that order.
HINT:
Long is automatically selected each time the ignition switch is turned to ON.
