Section 150 (Hybrid Transaxle System / Rear Traction Motor (Q610) - Service Information)
>>
Hybrid Transaxle Fluid
>>
Components [08/2020 - ]
Components [08/2020 - ]
WARNING:
This page is about a different variant/trim than selected.

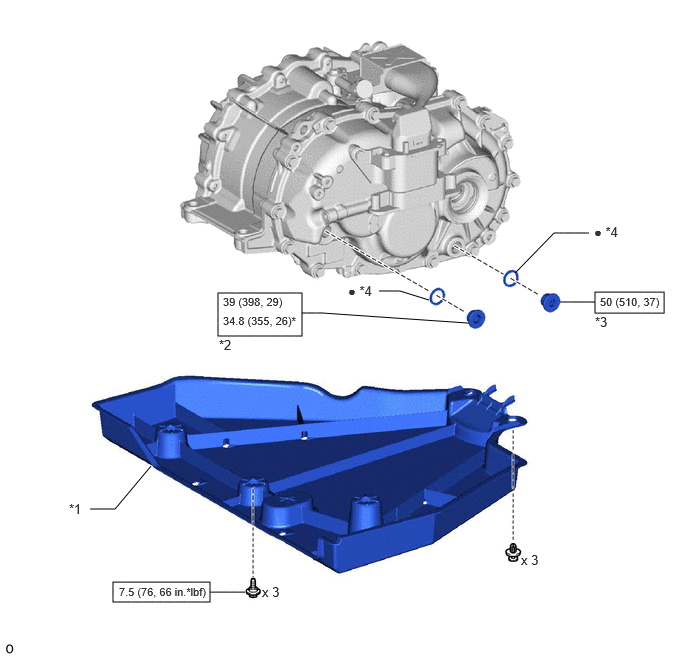

Fig 1: Hybrid Transaxle Fluid Replacement Components With Torque Specifications [08/2020 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
NO. 1 FLOOR UNDER COVER
*2
FILLER PLUG
*3
DRAIN PLUG
*4
GASKET
N.m (kgf/cm, ft.lbf): Specified torque
*
For use with union nut wrench
•
Non-reusable part
-
-
