Adjustment [02/2019 - 10/2019]: Procedure

Refer to PROCEDURE - Step 1

1. Make sure that the vehicle will remain level, and lift the vehicle.
2. Using a 10 mm union nut wrench and 10 mm straight hexagon, remove the filler plug and gasket from the rear traction motor with transaxle assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	10 mm Union Nut Wrench
   *2	10 mm Straight Hexagon

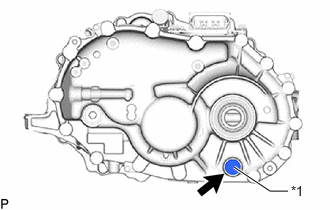

3. Using a 10 mm socket hexagon wrench, remove the drain plug and gasket from the rear traction motor with transaxle assembly and drain the hybrid transaxle fluid.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Drain Plug

4. Using a 10 mm socket hexagon wrench, install the drain plug and a new gasket to the rear traction motor with transaxle assembly.

   Torque: 50 N.m (510 kgf/cm, 37 ft.lbf)

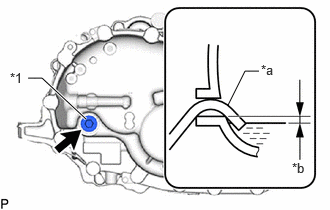

1. Add hybrid transaxle fluid until the hybrid transaxle fluid level is between 0 to 5 mm (0 to 0.196 in.) from the bottom lip of the filler plug opening. [*]

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Filler Plug
   *a	Filler Nozzle
   *b	0 to 5 mm (0 to 0.196 in.)

   NOTE:

   • Use Toyota Genuine ATF WS.
   • Be sure to fully insert the filler nozzle into the filler plug opening.
   • Be sure to add hybrid transaxle fluid slowly. If hybrid transaxle fluid is added quickly, the hybrid transaxle fluid may hit internal parts and bounce back, resulting in hybrid transaxle fluid coming out of the filler plug opening.
   • Be sure to directly check that the hybrid transaxle fluid level is within the specified range.
   • An insufficient or excessive amount of hybrid transaxle fluid may damage the rear traction motor with transaxle assembly.

   Reference

   1.7 liters (1.8 US qts, 1.5 Imp. qts)

2. After adding hybrid transaxle fluid, leave the vehicle for 30 seconds so that the hybrid transaxle fluid surface can become still again, and then check that the hybrid transaxle fluid level is between 0 to 5 mm (0 to 0.196 in.) from the bottom lip of the filler plug opening. (If the hybrid transaxle fluid level is too low, return to the Add Hybrid Transaxle Fluid procedure [*].)
   NOTE:

   After adding hybrid transaxle fluid, make sure to check the hybrid transaxle fluid level.

   See step  2

3. Using a 10 mm union nut wrench and 10 mm straight hexagon, temporarily install the filler plug and gasket to the rear traction motor with transaxle assembly.

   HINT:

   Reuse the old gasket as the filler plug will be removed again.

See step  2

Refer to PROCEDURE - Step 36
