Section 143 (Motor Generator Control System (Lithium-Ion Battery) - Diagnostic Codes (1 Of 5))
>>
MOTOR GENERATOR CONTROL SYSTEM (for LITHIUM-ION BATTERY)
>>
DTC P0A1B-1F: Generator Control Module Circuit Intermittent [06/2020 - ]
>>

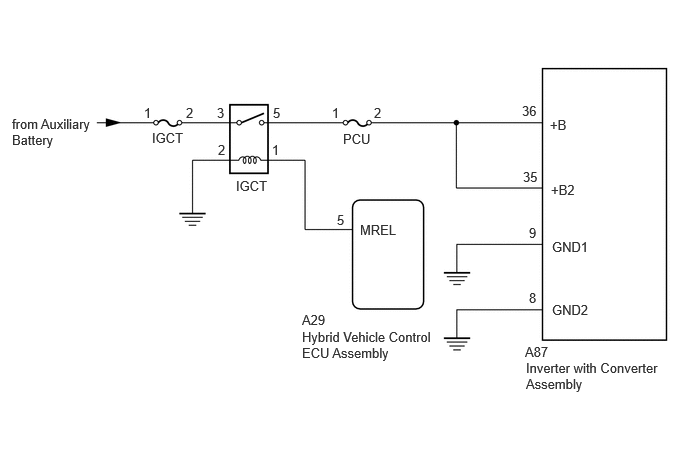

Wiring Diagram
DTC P0A1B-1F: Generator Control Module Circuit Intermittent [06/2020 - ]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
