Removal [08/2020 - 10/2022]: Procedure

WARNING: This page is about a different variant/trim than selected.

REMOVE WATER INLET WITH THERMOSTAT SUB-ASSEMBLY
Refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - 10/2022]

REMOVE ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING)

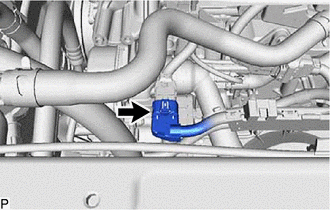

Disconnect the sensor wire connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using an 8 mm socket wrench, remove the bolt and disconnect the sensor wire from the engine water pump assembly (water inlet housing).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the engine water pump assembly (water inlet housing) connector.

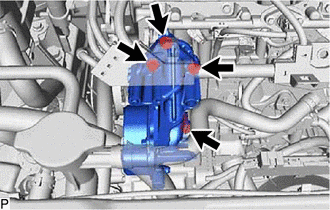

Remove the 4 bolts and engine water pump assembly (water inlet housing) from the cylinder block assembly.

Remove the gasket from the engine water pump assembly (water inlet housing).
