Section 14 (Engine Cooling System (A25A-FXS) - Service Information)
>>
Coolant
>>
Components [11/2018 - 12/2021]
Components [11/2018 - 12/2021]
WARNING:
This page is about a different variant/trim than selected.

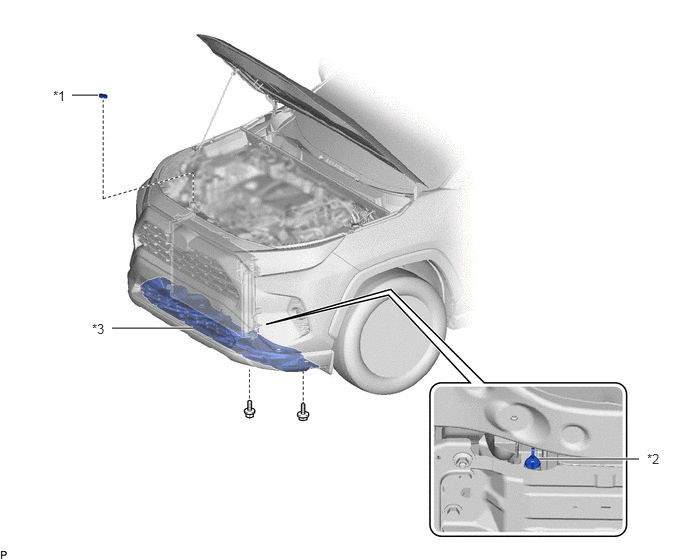

Fig 1: Coolant Replacement Components [11/2018 - 12/2021]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
RADIATOR CAP SUB-ASSEMBLY
*2
RADIATOR DRAIN COCK PLUG
*3
NO. 1 ENGINE UNDER COVER
-
-
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
