Removal [11/2018 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FRONT FENDER APRON SEAL RH

    Refer to PROCEDURE - Step 18 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 18 [02/2019 - 10/2019] , or refer to PROCEDURE - Step 18 [10/2019 - 08/2020] , or refer to PROCEDURE - Step 18 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 18 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 18 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 18 [10/2023 - ]

  2. REMOVE OIL PRESSURE CONTROL VALVE ASSEMBLY
    1. Disconnect the oil pressure control valve assembly connector.

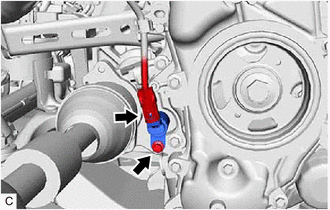

      GTY761263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using an 8 mm socket wrench, remove the bolt and oil pressure control valve assembly from the timing chain cover assembly.
