Components [11/2018 - 08/2020]
WARNING: This page is about a different variant/trim than selected.

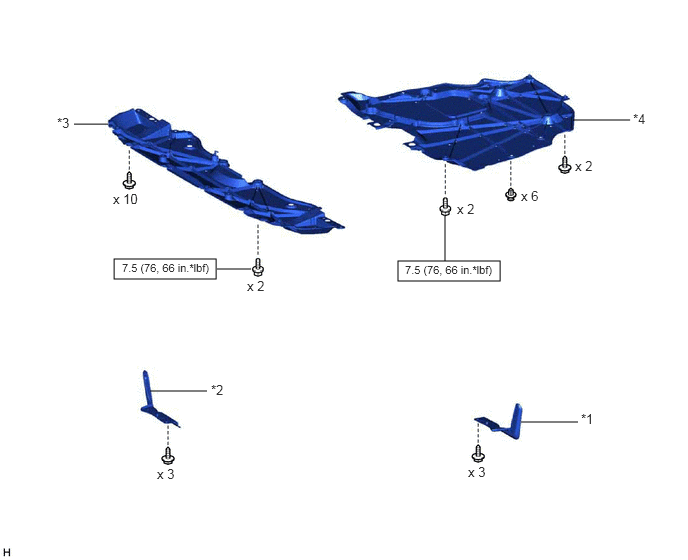

Fig 1: Oil Pressure And Temperature Sensor Replacement Components With Torque Specifications [11/2018 - 08/2020] (1 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT FENDER FRONT SPLASH SHIELD LH | *2 | FRONT FENDER FRONT SPLASH SHIELD RH |
| *3 | NO. 1 ENGINE UNDER COVER | *4 | NO. 2 ENGINE UNDER COVER ASSEMBLY |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

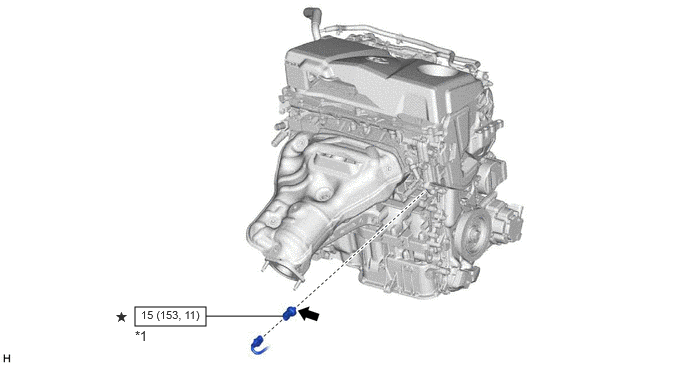

Fig 2: Oil Pressure And Temperature Sensor Replacement Components With Torque Specifications [11/2018 - 08/2020] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | OIL PRESSURE AND TEMPERATURE SENSOR | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | Adhesive 1344 | ||
| * | Precoated part | - | - |
