Removal [11/2018 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FRONT FENDER FRONT SPLASH SHIELD LH

    Refer to PROCEDURE - Step 13 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 13 [02/2019 - 10/2019] , or refer to PROCEDURE - Step 13 [10/2019 - 08/2020] , or refer to PROCEDURE - Step 13 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 13 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 13 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 13 [10/2023 - ]

  2. REMOVE FRONT FENDER FRONT SPLASH SHIELD RH

    Refer to PROCEDURE - Step 14 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 14 [02/2019 - 10/2019] , or refer to PROCEDURE - Step 14 [10/2019 - 08/2020] , or refer to PROCEDURE - Step 14 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 14 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 14 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 14 [10/2023 - ]

  3. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 15 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 15 [02/2019 - 10/2019] , or refer to PROCEDURE - Step 15 [10/2019 - 08/2020] , or refer to PROCEDURE - Step 15 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 15 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 15 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 15 [10/2023 - ]

  4. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 16 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 16 [02/2019 - 10/2019] , or refer to PROCEDURE - Step 16 [10/2019 - 08/2020] , or refer to PROCEDURE - Step 16 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 16 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 16 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 16 [10/2023 - ]

  5. DRAIN ENGINE COOLANT (for Engine)

    Refer to PROCEDURE - Step 1 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 1 [02/2019 - 12/2021] , or refer to PROCEDURE - Step 1 [12/2021 - ]

  6. DRAIN ENGINE OIL

    Refer to PROCEDURE - Step 2 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 2 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 2 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 2 [12/2021 - 10/2023] , or refer to PROCEDURE - Step 2 [10/2023 - ]

  7. REMOVE OIL COOLER ASSEMBLY

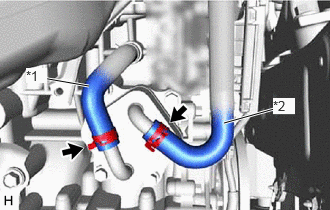

    1. Slide the 2 clips and disconnect the No. 1 water by-pass hose and No. 2 water by-pass hose from the oil cooler assembly.
      GTY885841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Water By-pass Hose
      *2 No. 2 Water By-pass Hose

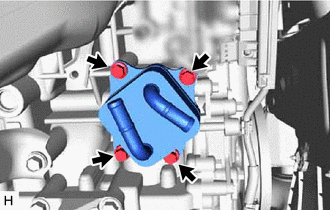

    2. Remove the 4 bolts and oil cooler assembly from the cylinder block sub-assembly.
      GTY848904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 oil cooler gaskets from the oil cooler assembly.
      GTY925630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

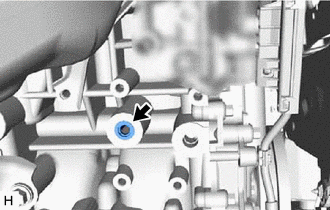

    4. Remove the oil control valve filter from the cylinder block sub-assembly.
      GTY848905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
