Components [11/2018 - 08/2020]
WARNING: This page is about a different variant/trim than selected.
Fig 1: Fuel Tank (W/O Canister Pump Module) Replacement Components With Torque Specifications [11/2018 - 08/2020] (1 Of 3)
| Callout | Description | Callout | Description |
| *1 | BATTERY HOLE COVER | *2 | NEGATIVE AUXILIARY BATTERY TERMINAL |
| *3 | DECK BOARD ASSEMBLY | *4 | REAR NO. 2 FLOOR BOARD |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |
Fig 2: Fuel Tank (W/O Canister Pump Module) Replacement Components With Torque Specifications [11/2018 - 08/2020] (2 Of 3)
| Callout | Description | Callout | Description |
| *1 | FRONT CENTER FLOOR COVER | *2 | FRONT FLOOR COVER LH |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

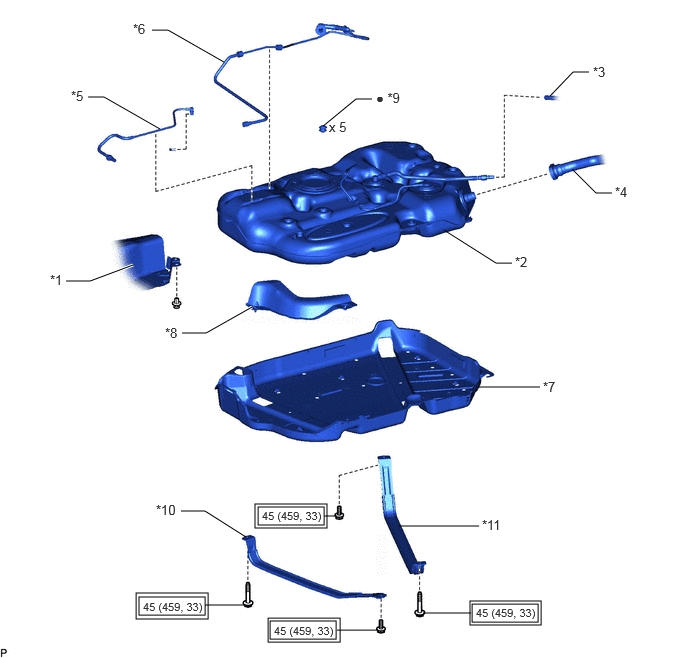

Fig 3: Fuel Tank (W/O Canister Pump Module) Replacement Components With Torque Specifications [11/2018 - 08/2020] (3 Of 3)
| Callout | Description | Callout | Description |
| *1 | FRONT LOWER NO. 1 FLOOR HEAT INSULATOR | *2 | FUEL TANK ASSEMBLY |
| *3 | FUEL TANK BREATHER TUBE | *4 | FUEL TANK FILLER PIPE SUB-ASSEMBLY |
| *5 | FUEL TANK MAIN TUBE SUB-ASSEMBLY | *6 | NO. 1 FUEL EVAPORATION TUBE SUB-ASSEMBLY |
| *7 | NO. 1 FUEL TANK PROTECTOR SUB-ASSEMBLY | *8 | NO. 2 FUEL TANK PROTECTOR |
| *9 | NO. 6 FUEL TANK CUSHION | *10 | FUEL TANK BAND |
| *11 | FUEL TANK BAND LH | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part |
