Removal [11/2018 - 08/2020]: Procedure
- PRECAUTION NOTE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.
Refer to PRECAUTION [11/2018 - ]
- REMOVE DECK BOARD ASSEMBLY
Refer to PROCEDURE - Step 2 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 2 [02/2019 - 10/2019] , or refer to PROCEDURE - Step 2 [10/2019 - 08/2020]
- REMOVE REAR NO. 2 FLOOR BOARD
Refer to PROCEDURE - Step 3 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 3 [02/2019 - 10/2019] , or refer to PROCEDURE - Step 3 [10/2019 - 08/2020]
- REMOVE BATTERY HOLE COVER
Refer to PROCEDURE - Step 4 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 4 [02/2019 - 10/2019] , or refer to PROCEDURE - Step 4 [10/2019 - 08/2020]
- DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [11/2018 - 02/2019] , or refer to INITIALIZATION [02/2019 - 10/2019] , or refer to INITIALIZATION [10/2019 - 06/2020] , or refer to INITIALIZATION [06/2020 - 08/2020]
- REMOVE FUEL SUCTION WITH PUMP AND GAUGE TUBE ASSEMBLY
Refer to REMOVAL [11/2018 - 08/2020]
- REMOVE FUEL SENDER GAUGE ASSEMBLY

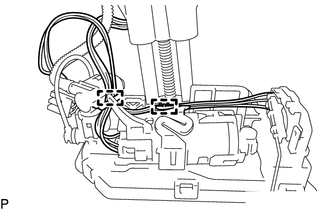

- Disconnect the 2 connectors from the fuel suction plate sub-assembly.
- Detach the clamp and disconnect the wire harness.NOTE:
- Do not damage the wire harness.
- When disengaging each wire harness from the clamp, disengage one wire at a time.
- Detach the 2 clamps and disconnect the wire harness.NOTE:
- Do not damage the wire harness.
- When disengaging each wire harness from the clamp, disengage one wire at a time.
- Detach the claw and remove the fuel sender gauge assembly.NOTE:
Be careful not to bend the arm of the fuel sender gauge assembly.
- Disconnect the 2 connectors from the fuel suction plate sub-assembly.
