Components [11/2018 - ]
WARNING: This page is about a different variant/trim than selected.
| Callout | Description | Callout | Description |
| *1 | BATTERY HOLE COVER | *2 | NEGATIVE AUXILIARY BATTERY TERMINAL |
| *3 | DECK BOARD ASSEMBLY | *4 | REAR NO. 2 FLOOR BOARD |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |

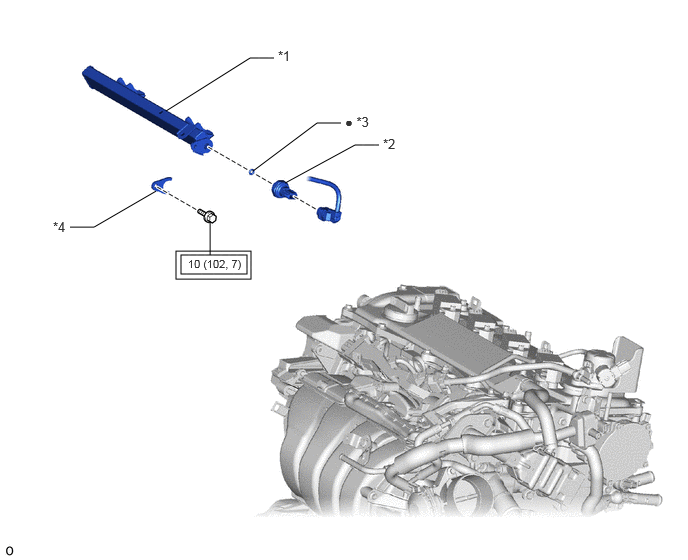

| Callout | Description | Callout | Description |
| *1 | FUEL DELIVERY PIPE SUB-ASSEMBLY | *2 | NO. 2 FUEL PRESSURE SENSOR |
| *3 | O-RING | *4 | NO. 2 FUEL PRESSURE SENSOR HOLDER |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part |
