Components [11/2018 - ]
WARNING: This page is about a different variant/trim than selected.
Fig 1: Fuel Pressure Sensor (For High Pressure) Replacement Components With Torque Specifications (1 Of 2)
| Callout | Description | Callout | Description |
| *1 | BATTERY HOLE COVER | *2 | CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL |
| *3 | DECK BOARD ASSEMBLY | *4 | REAR NO. 2 FLOOR BOARD |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |

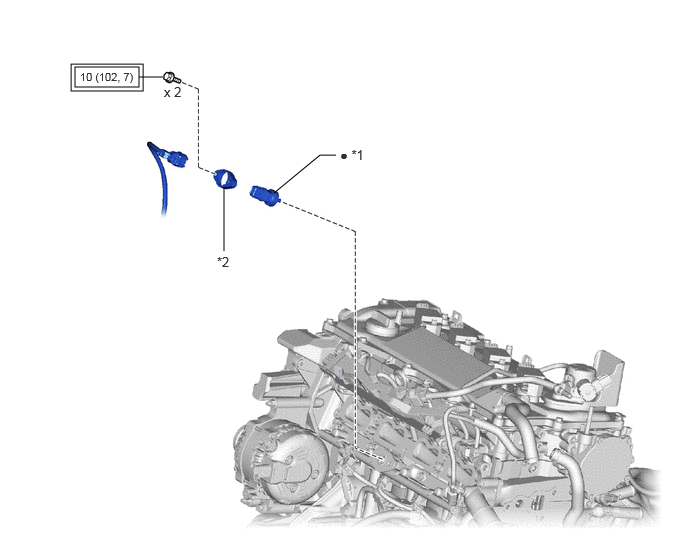

Fig 2: Fuel Pressure Sensor (For High Pressure) Replacement Components With Torque Specifications (2 Of 2)
| Callout | Description | Callout | Description |
| *1 | FUEL PRESSURE SENSOR | *2 | NO. 1 FUEL PRESSURE SENSOR HOLDER |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part |
