Components [11/2018 - 08/2020]
WARNING: This page is about a different variant/trim than selected.
Fig 1: Fuel Main Valve (W/O Canister Pump Module) Replacement Components With Torque Specifications [11/2018 - 08/2020] (1 Of 2)
| Callout | Description | Callout | Description |
| *1 | BATTERY HOLE COVER | *2 | CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL |
| *3 | DECK BOARD ASSEMBLY | *4 | REAR NO. 2 FLOOR BOARD |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |

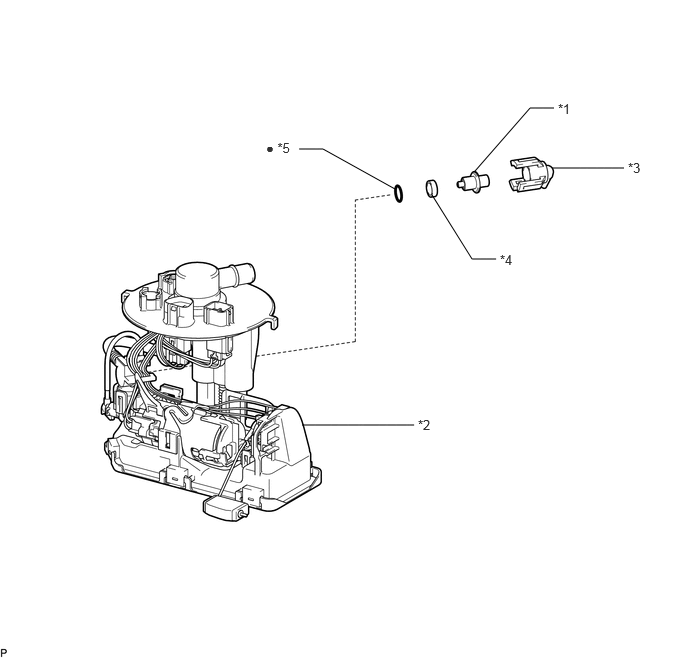

Fig 2: Fuel Main Valve (W/O Canister Pump Module) Replacement Components [11/2018 - 08/2020] (2 Of 2)
| *1 | FUEL MAIN VALVE ASSEMBLY | *2 | FUEL SUCTION WITH PUMP AND GAUGE TUBE ASSEMBLY |
| *3 | NO. 3 FUEL SUCTION SUPPORT | *4 | SPACER |
| *5 | O-RING | - | - |
| • | Non-reusable part | - | - |
