Components [11/2018 - 08/2020]
WARNING: This page is about a different variant/trim than selected.
Fig 1: Fuel Injector (For Port Injection) Replacement Components With Torque Specifications [11/2018 - 08/2020] (1 Of 2)
| Callout | Description | Callout | Description |
| *1 | BATTERY HOLE COVER | *2 | NEGATIVE AUXILIARY BATTERY TERMINAL |
| *3 | DECK BOARD ASSEMBLY | *4 | REAR NO. 2 FLOOR BOARD |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |

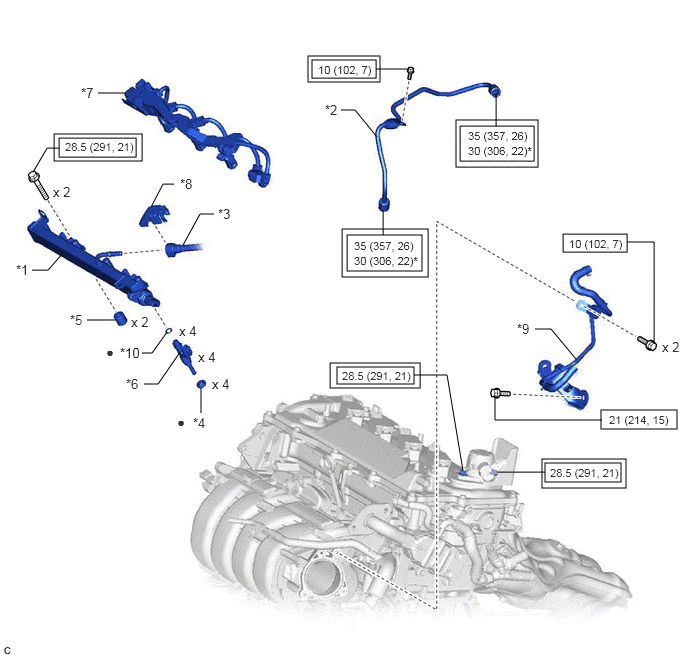

Fig 2: Fuel Injector (For Port Injection) Replacement Components With Torque Specifications [11/2018 - 08/2020] (2 Of 2)
| Callout | Description | Callout | Description |
| *1 | FUEL DELIVERY PIPE SUB-ASSEMBLY | *2 | NO. 1 FUEL PIPE SUB-ASSEMBLY |
| *3 | FUEL TUBE SUB-ASSEMBLY | *4 | INJECTOR VIBRATION INSULATOR |
| *5 | NO. 1 DELIVERY PIPE SPACER | *6 | PORT FUEL INJECTOR ASSEMBLY |
| *7 | NO. 5 ENGINE WIRE | *8 | FUEL PIPE CLAMP |
| *9 | NO. 2 WATER BY-PASS PIPE | *10 | O-RING |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| * | For use with union nut wrench | • | Non-reusable part |
