Removal [08/2020 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. SECURE VEHICLE
    1. Fully apply the parking brake and chock a wheel.
      WARNING:
      • Make sure to apply the parking brake and chock a wheel before performing this procedure.
      • If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.
      GTY655852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 26 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 26 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 26 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 26 [10/2023 - ]

  3. REMOVE INLET AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 3

  4. REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 4

  5. REMOVE FRONT FENDER FRONT SPLASH SHIELD LH

    Refer to PROCEDURE - Step 13 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 13 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 13 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 13 [10/2023 - ]

  6. REMOVE FRONT FENDER FRONT SPLASH SHIELD RH

    Refer to PROCEDURE - Step 14 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 14 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 14 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 14 [10/2023 - ]

  7. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 15 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 15 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 15 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 15 [10/2023 - ]

  8. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 16 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 16 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 16 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 16 [10/2023 - ]

  9. REMOVE FRONT EXHAUST PIPE ASSEMBLY

    Refer to REMOVAL [08/2020 - ]

  10. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [11/2018 - 12/2021] , or refer to REMOVAL [12/2021 - ]

  11. REMOVE NO. 1 CONSOLE BOX DUCT

    Refer to PROCEDURE - Step 3

  12. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

    Refer to PROCEDURE - Step 4

  13. REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Move the shift lever to N.
    2. Remove the nut and disconnect the transmission control cable assembly from the control shaft lever.
      GTY856872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a screwdriver, disengage the 4 claws and disconnect the transmission control cable assembly with the clip from the No. 1 transmission control cable bracket.
      GTY856871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using a screwdriver, disengage the 2 claws and remove the clip from the transmission control cable assembly.
      GTY745662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

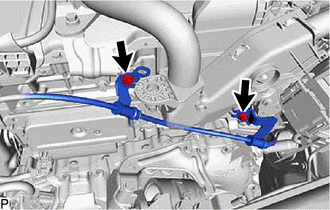

    5. Remove the 2 bolts and disconnect the transmission control cable assembly from the inverter with converter assembly.
      GTY856864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the 2 nuts and then remove the transmission control cable assembly from the vehicle body.
      GTY930294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the nut and disconnect the transmission control cable assembly from the vehicle body.
      GTY856862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
