Components [11/2018 - 02/2019]
WARNING: This page is about a different variant/trim than selected.

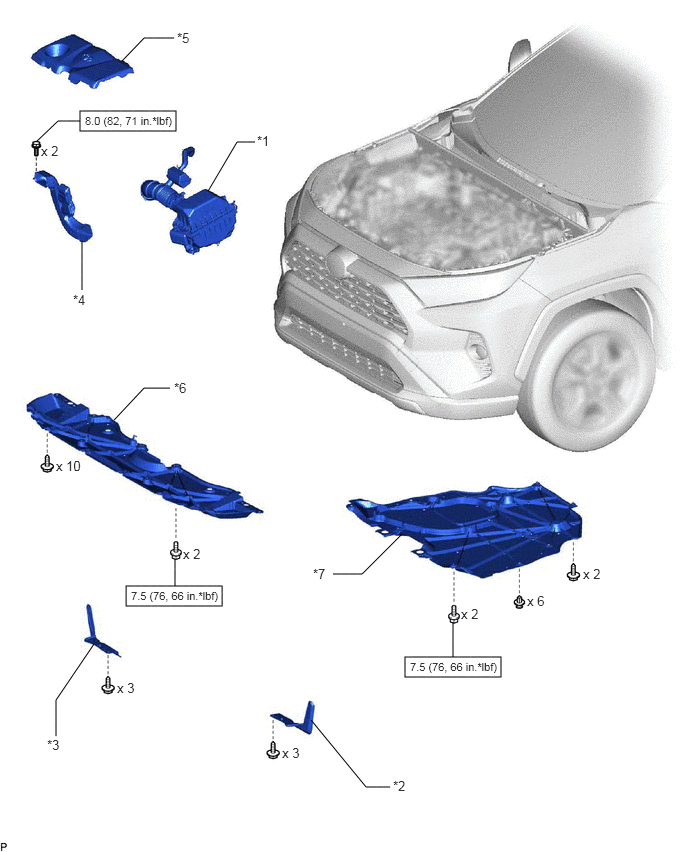

Fig 1: Transmission Control Cable Replacement Components With Torque Specifications [11/2018 - 02/2019] (1 Of 2)
| Callout | Description | Callout | Description |
| *1 | AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE | *2 | FRONT FENDER FRONT SPLASH SHIELD LH |
| *3 | FRONT FENDER FRONT SPLASH SHIELD RH | *4 | INLET AIR CLEANER ASSEMBLY |
| *5 | NO. 1 ENGINE COVER SUB-ASSEMBLY | *6 | NO. 1 ENGINE UNDER COVER |
| *7 | NO. 2 ENGINE UNDER COVER ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

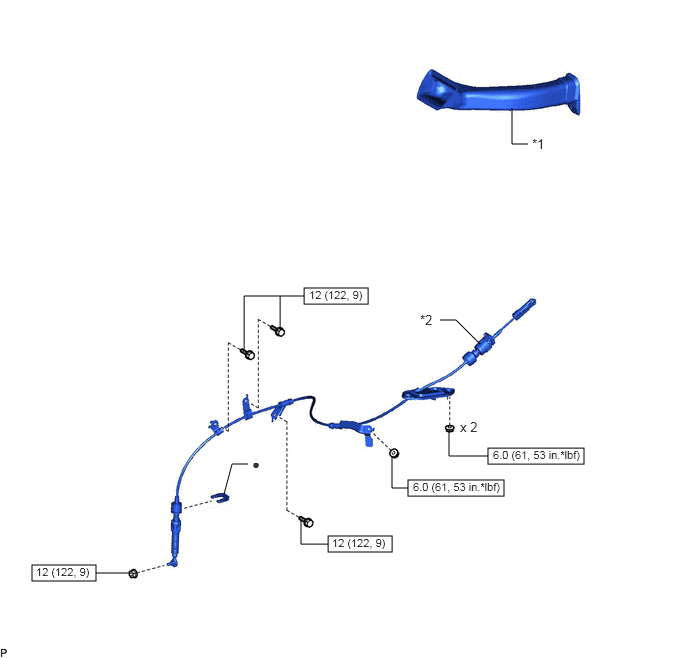

Fig 2: Transmission Control Cable Replacement Components With Torque Specifications [11/2018 - 02/2019] (2 Of 2)
| Callout | Description | Callout | Description |
| *1 | NO. 1 CONSOLE BOX DUCT | *2 | TRANSMISSION CONTROL CABLE ASSEMBLY |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
