Components [11/2018 - 02/2019]
WARNING: This page is about a different variant/trim than selected.

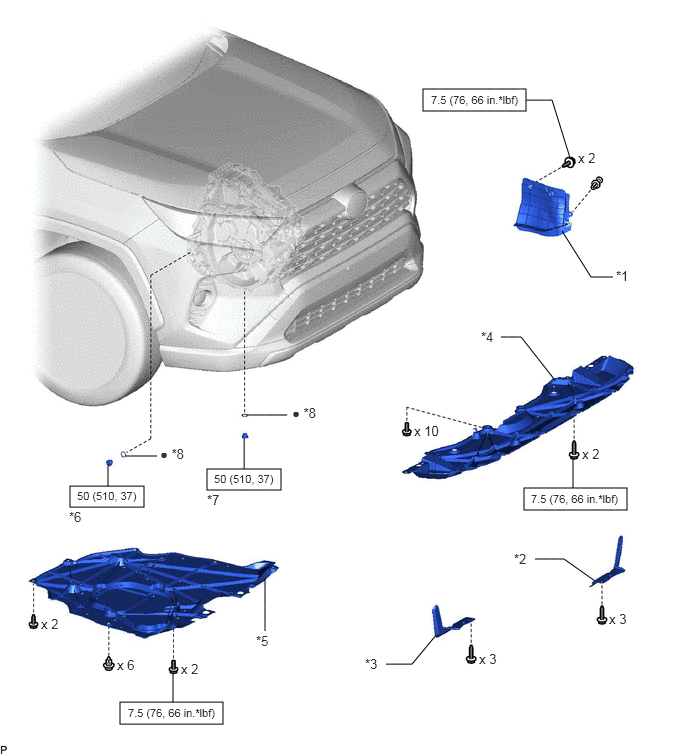

| Callout | Description | Callout | Description |
| *1 | FRONT FENDER APRON SEAL LH | *2 | FRONT FENDER FRONT SPLASH SHIELD LH |
| *3 | FRONT FENDER FRONT SPLASH SHIELD RH | *4 | NO. 1 ENGINE UNDER COVER |
| *5 | NO. 2 ENGINE UNDER COVER ASSEMBLY | *6 | FILLER PLUG |
| *7 | DRAIN PLUG | *8 | GASKET |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
