Components [06/2020 - ]
WARNING: This page is about a different variant/trim than selected.

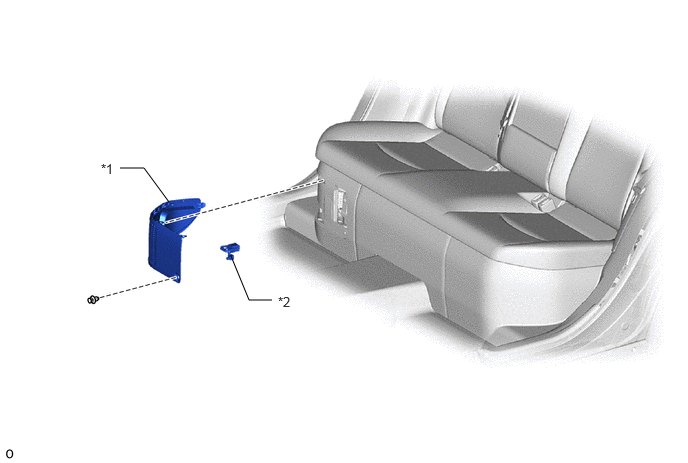

| *1 | BATTERY SERVICE HOLE COVER | *2 | SERVICE PLUG GRIP |

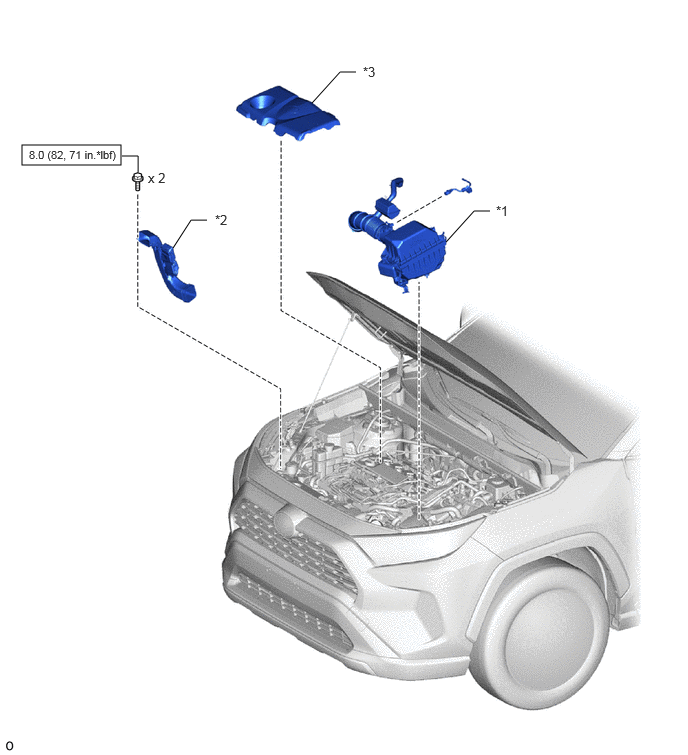

Fig 2: Inverter With Converter (For AWD) Replacement Components With Torque Specifications [06/2020 - ] (2 Of 4)
| Callout | Description | Callout | Description |
| *1 | AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE | *2 | INLET AIR CLEANER ASSEMBLY |
| *3 | NO. 1 ENGINE COVER SUB-ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

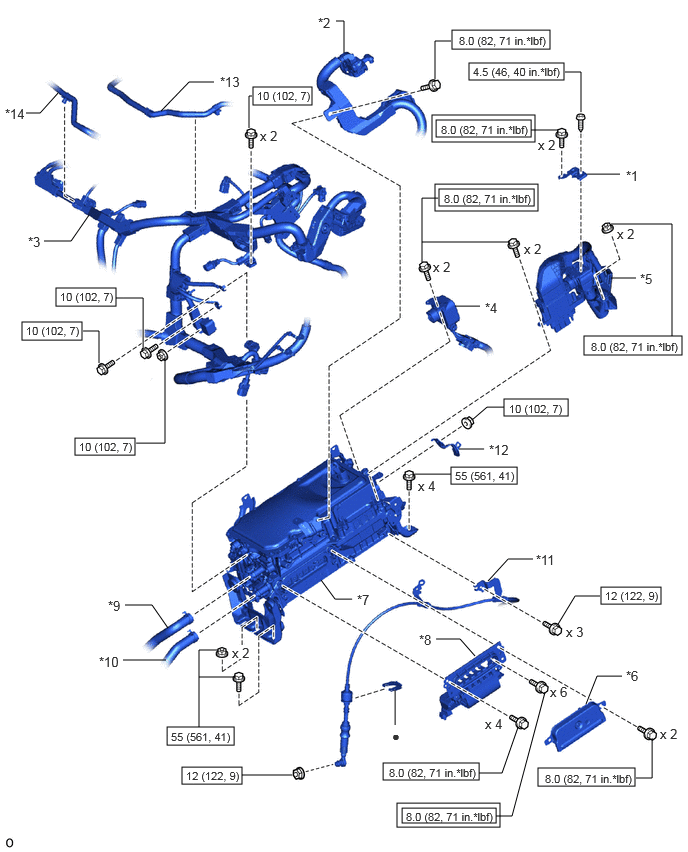

Fig 3: Inverter With Converter (For AWD) Replacement Components With Torque Specifications [06/2020 - ] (3 Of 4)
| Callout | Description | Callout | Description |
| *1 | CONNECTOR COVER ASSEMBLY | *2 | ENGINE ROOM MAIN WIRE |
| *3 | ENGINE WIRE | *4 | HV AIR CONDITIONING WIRE |
| *5 | HV FLOOR UNDER WIRE | *6 | INVERTER COVER |
| *7 | INVERTER WITH CONVERTER ASSEMBLY | *8 | MOTOR CABLE |
| *9 | NO. 1 INVERTER COOLING HOSE | *10 | NO. 4 INVERTER COOLING HOSE |
| *11 | TRANSMISSION CONTROL CABLE ASSEMBLY | *12 | WIRE HARNESS CLAMP BRACKET |
| *13 | NO. 1 FUEL VAPOR FEED HOSE | *14 | NO. 2 FUEL VAPOR FEED HOSE |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| • | Non-reusable part | - | - |

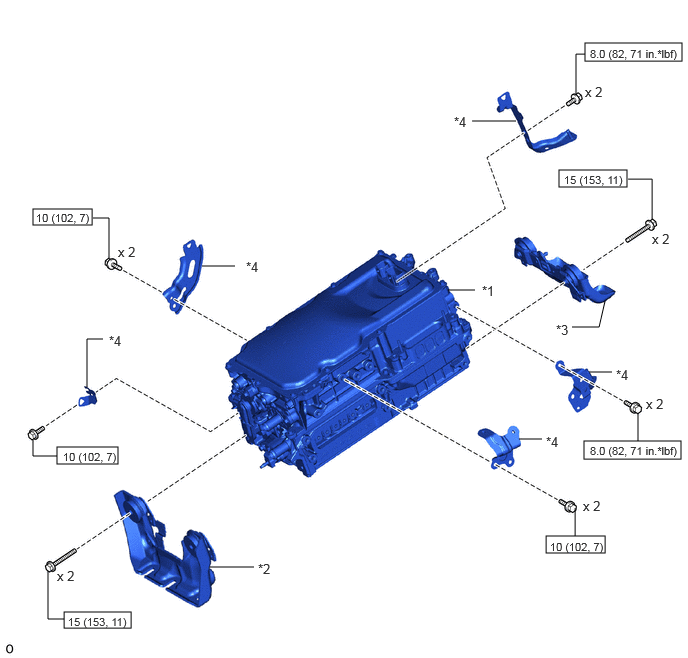

Fig 4: Inverter With Converter (For AWD) Replacement Components With Torque Specifications [06/2020 - ] (4 Of 4)
| Callout | Description | Callout | Description |
| *1 | INVERTER WITH CONVERTER ASSEMBLY | *2 | NO. 1 INVERTER BRACKET |
| *3 | NO. 2 INVERTER BRACKET | *4 | WIRE HARNESS CLAMP BRACKET |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
