Components [02/2019 - ]
WARNING: This page is about a different variant/trim than selected.

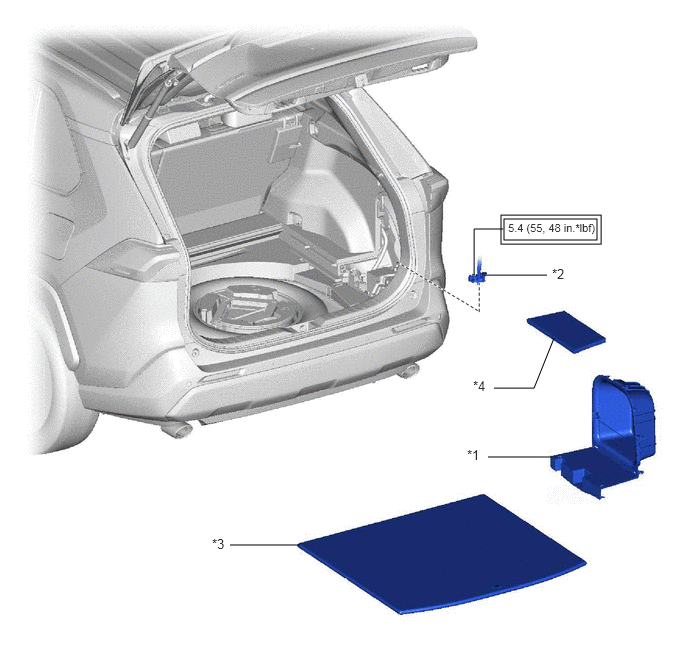

Fig 1: Hybrid Vehicle Control ECU Replacement Components With Torque Specifications [02/2019 - ] (1 Of 3)
| Callout | Description | Callout | Description |
| *1 | BATTERY HOLE COVER | *2 | NEGATIVE AUXILIARY BATTERY TERMINAL |
| *3 | DECK BOARD ASSEMBLY | *4 | REAR NO. 2 FLOOR BOARD |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |

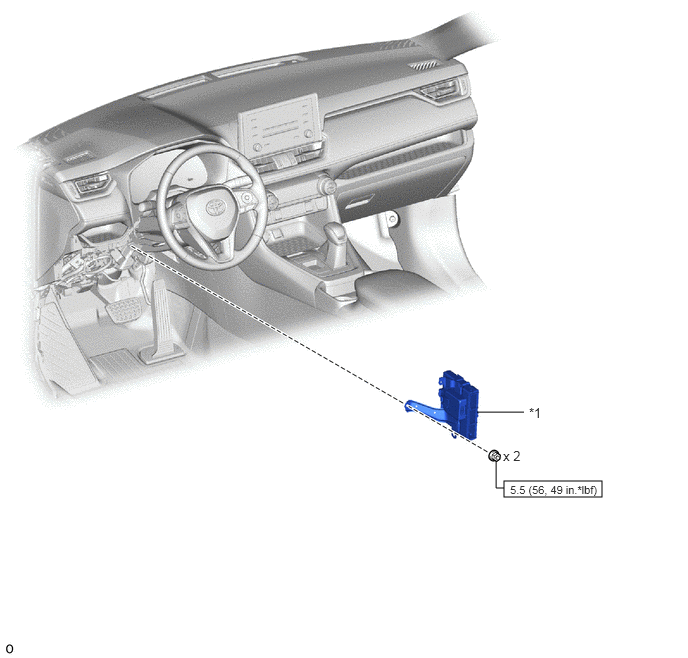

Fig 2: Hybrid Vehicle Control ECU Replacement Components With Torque Specifications [02/2019 - ] (2 Of 3)
| Callout | Description | Callout | Description |
| *1 | HYBRID VEHICLE CONTROL ECU ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

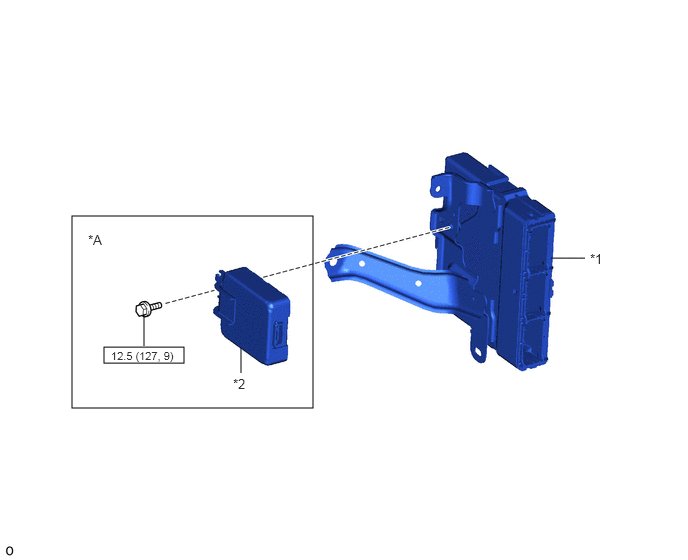

Fig 3: Hybrid Vehicle Control ECU Replacement Components With Torque Specifications [02/2019 - ] (3 Of 3)
| Callout | Description | Callout | Description |
| *A | w/ VEHICLE APPROACHING SPEAKER CONTROLLER | - | - |
| *1 | HYBRID VEHICLE CONTROL ECU ASSEMBLY | *2 | VEHICLE APPROACHING SPEAKER CONTROLLER |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
