Components [12/2021 - ]

WARNING: This page is about a different variant/trim than selected.

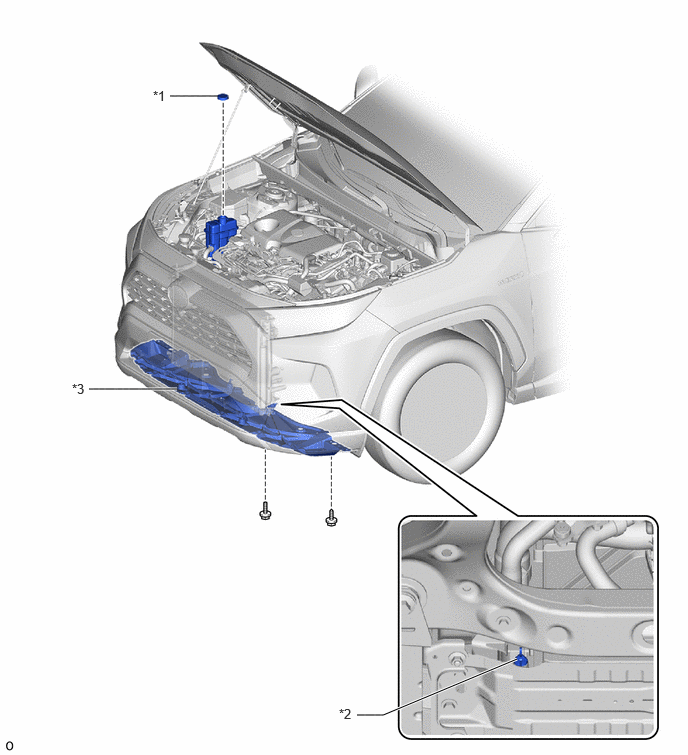

Fig 1: Coolant (For Inverter) Replacement Components [12/2021 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	RADIATOR CAP SUB-ASSEMBLY	*2	RADIATOR DRAIN COCK PLUG
*3	NO. 1 ENGINE UNDER COVER	-	-
