Section 10 (Hybrid Battery Control System - Service Information (1 Of 7))
>>
COOLANT (for Inverter)
>>
Components [11/2018 - 12/2021]
Components [11/2018 - 12/2021]
WARNING:
This page is about a different variant/trim than selected.

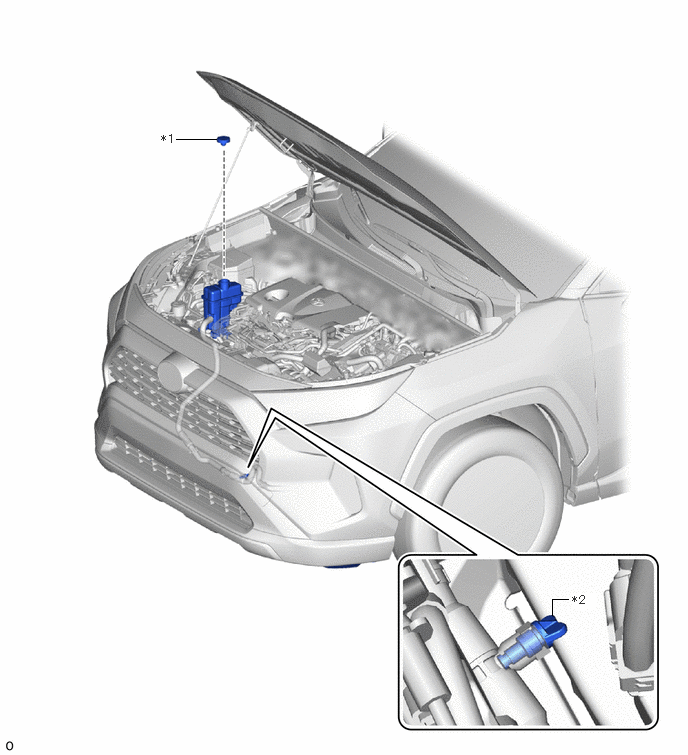

Fig 1: Coolant (For Inverter) Replacement Components [11/2018 - 12/2021]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
RESERVE TANK CAP
*2
DRAIN COCK PLUG
