DTC B1660: P Seat Airbag Active Mode Indicator [08/2020 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota RAV4, 2024 Toyota RAV4, 2023 Toyota RAV4, 2022 Toyota RAV4, and 2021 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK PASSENGER AIRBAG ON/OFF INDICATOR CONDITION
    1. Turn the ignition switch to ON.
    2. Check the passenger airbag ON/OFF indicator operation.

      HINT:

      Refer to the normal condition of the passenger airbag ON/OFF indicator.

      Refer to OPERATION CHECK [08/2020 - ]

      Result

      Result Proceed to
      Passenger airbag ON/OFF indicator illumination is always on. A
      Passenger airbag ON/OFF indicator illumination is always off. B

    Result:

    B

    See step  7

    Result:

    A

    See step  2

  2. CHECK CONNECTION OF CONNECTORS
    1. Turn the ignition switch off.
    2. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 90 seconds.
    3. Check that the connectors are properly connected to the airbag ECU assembly and telltale light assembly.

      Result

      Proceed to
      The connectors are properly connected
      The connectors are not properly connected

    Result:

    The connectors are not properly connected

    CONNECT CONNECTORS PROPERLY

    Result:

    The connectors are properly connected

    See step  3

  3. CHECK CONNECTORS
    1. Disconnect the connectors from the airbag ECU assembly and telltale light assembly.
      GTY861579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Telltale Light Assembly
      *2 Airbag ECU Assembly
      *3 Instrument Panel Wire
    2. Check that the connectors (on the airbag ECU assembly side and telltale light assembly side) are not damaged.

      Result

      Proceed to
      The connectors are not deformed or damaged
      The connectors are deformed or damaged

    Result:

    The connectors are deformed or damaged

    REPLACE INSTRUMENT PANEL WIRE

    Result:

    The connectors are not deformed or damaged

    See step  4

  4. CHECK PASSENGER AIRBAG ON/OFF INDICATOR
    1. Connect the connector to the telltale light assembly.
    2. Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
    3. Turn the ignition switch to ON.
    4. Check the passenger airbag ON/OFF indicator operation.

      Result

      Proceed to
      The passenger airbag ON/OFF indicator does not come on
      The passenger airbag ON/OFF indicator comes on

    Result:

    The passenger airbag ON/OFF indicator comes on

    See step  6

    Result:

    The passenger airbag ON/OFF indicator does not come on

    See step  5

  5. CHECK DTC
    1. Turn the ignition switch off.
      GTY929556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Telltale Light Assembly
      *2 Airbag ECU Assembly
    2. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 90 seconds.
    3. Connect the connectors to the airbag ECU assembly.
    4. Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
    5. Turn the ignition switch to ON, and wait for at least 60 seconds.
    6. Clear the DTCs stored in memory.

      Refer to DTC CHECK / CLEAR [08/2020 - ]

      Body Electrical > SRS Airbag > Clear DTCs

    7. Turn the ignition switch off.
    8. Turn the ignition switch to ON, and wait for at least 60 seconds.
    9. Check for DTCs.

      Refer to DTC CHECK / CLEAR [08/2020 - ]

      Body Electrical > SRS Airbag > Trouble Codes

      Result

      Proceed to
      DTC B1660 is not output
      DTC B1660 is output

      HINT:

      Codes other than DTC B1660 may be output at this time, but they are not related to this check.

    Result:

    DTC B1660 is not output

    USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [11/2018 - ]

    Result:

    DTC B1660 is output

    REPLACE AIRBAG ECU ASSEMBLY. Refer to  REMOVAL [08/2020 - 12/2021]  , or refer to  REMOVAL [12/2021 - 10/2022]  , or refer to  REMOVAL [10/2022 - 10/2023]  , or refer to  REMOVAL [10/2023 - ]

  6. CHECK INSTRUMENT PANEL WIRE
    1. Turn the ignition switch off.

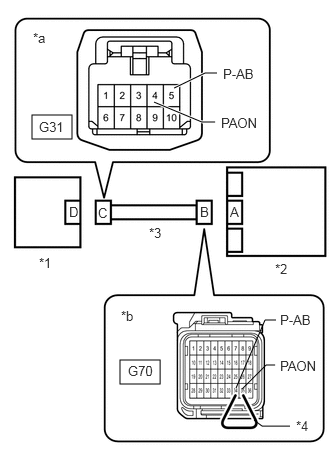

      GTY933265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Telltale Light Assembly
      *2 Airbag ECU Assembly
      *3 Instrument Panel Wire
      *4 Service Wire
      *a Front view of wire harness connector
      (to Telltale Light Assembly)
      *b Front view of wire harness connector
      (to Airbag ECU Assembly)
    2. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 90 seconds.
    3. Disconnect the connector from the telltale light assembly.
    4. Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
    5. Turn the ignition switch to ON.
    6. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      G31-5 (P-AB) - Body ground Ignition switch ON Below 1 V
      G31-4 (PAON) - Body ground Ignition switch ON Below 1 V
    7. Turn the ignition switch off.
    8. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 90 seconds.
    9. Using a service wire, connect terminals 34 (P-AB) and 35 (PAON) of connector B.
      NOTE:

      Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

    10. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G31-5 (P-AB) - G31-4 (PAON) Always Below 1 Ω
    11. Disconnect the service wire from connector B.
    12. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G31-5 (P-AB) - G31-4 (PAON) Always 1 MΩ or higher
      G31-5 (P-AB) - Body ground Always 1 MΩ or higher
      G31-4 (PAON) - Body ground Always 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE TELLTALE LIGHT ASSEMBLY. Refer to  REMOVAL [08/2020 - 12/2021]  , or refer to  REMOVAL [12/2021 - 10/2022]  , or refer to  REMOVAL [10/2022 - 10/2023]  , or refer to  REMOVAL [10/2023 - ]

    Result:

    NG

    REPLACE INSTRUMENT PANEL WIRE

  7. CHECK CONNECTION OF CONNECTORS
    1. Turn the ignition switch off.
    2. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 90 seconds.
    3. Check that the connectors are properly connected to the airbag ECU assembly and telltale light assembly.

      Result

      Proceed to
      The connectors are properly connected
      The connectors are not properly connected

    Result:

    The connectors are not properly connected

    CONNECT CONNECTORS PROPERLY

    Result:

    The connectors are properly connected

    See step  8

  8. CHECK CONNECTORS
    1. Disconnect the connectors from the airbag ECU assembly and telltale light assembly.
      GTY861578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Telltale Light Assembly
      *2 Airbag ECU Assembly
      *3 Instrument Panel Wire
    2. Check that the connectors (on the airbag ECU assembly side and telltale light assembly side) are not damaged.

      Result

      Proceed to
      The connectors are not deformed or damaged
      The connectors are deformed or damaged

    Result:

    The connectors are deformed or damaged

    REPLACE INSTRUMENT PANEL WIRE

    Result:

    The connectors are not deformed or damaged

    See step  9

  9. CHECK INSTRUMENT PANEL WIRE
    1. Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
      GTY870368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Telltale Light Assembly
      *2 Airbag ECU Assembly
      *3 Instrument Panel Wire
      *4 Service Wire
      *a Front view of wire harness connector
      (to Telltale Light Assembly)
      *b Front view of wire harness connector
      (to Airbag ECU Assembly)
    2. Turn the ignition switch to ON.
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      G31-5 (P-AB) - Body ground Ignition switch ON Below 1 V
      G31-4 (PAON) - Body ground Ignition switch ON Below 1 V
    4. Turn the ignition switch off.
    5. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 90 seconds.
    6. Using a service wire, connect terminals 34 (P-AB) and 35 (PAON) of connector B.
      NOTE:

      Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

    7. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G31-5 (P-AB) - G31-4 (PAON) Always Below 1 Ω
    8. Disconnect the service wire from connector B.
    9. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G31-5 (P-AB) - G31-4 (PAON) Always 1 MΩ or higher
      G31-5 (P-AB) - Body ground Always 1 MΩ or higher
      G31-4 (PAON) - Body ground Always 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE INSTRUMENT PANEL WIRE

    Result:

    OK

    See step  10

  10. CHECK HARNESS AND CONNECTOR (SOURCE VOLTAGE)
    1. Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
      GTY897504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Telltale Light Assembly)
    2. Turn the ignition switch to ON.
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      G31-9 (IG) - Body ground Ignition switch ON 11 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  11

  11. CHECK PASSENGER AIRBAG ON/OFF INDICATOR
    1. Turn the ignition switch off.
      GTY881728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Airbag ECU Assembly)
    2. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 90 seconds.
    3. Connect the connector to the telltale light assembly.
    4. Using a service wire, connect terminal 35 (PAON) and body ground.
    5. Using a service wire, connect terminal 34 (P-AB) and body ground.
    6. Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
    7. Turn the ignition switch to ON.
    8. Check the indicator according to the table below.

      OK

      Tester Connection Switch Condition Passenger Airbag ON/OFF Indicator
      G70-35 (PAON) - Body ground Ignition switch ON "ON" comes on
      G70-34 (P-AB) - Body ground Ignition switch ON "OFF" comes on
    9. Turn the ignition switch off.
    10. Disconnect the service wire from airbag ECU assembly.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE TELLTALE LIGHT ASSEMBLY. Refer to  REMOVAL [08/2020 - 12/2021]  , or refer to  REMOVAL [12/2021 - 10/2022]  , or refer to  REMOVAL [10/2022 - 10/2023]  , or refer to  REMOVAL [10/2023 - ]

    Result:

    OK

    See step  12

  12. CHECK DTC
    1. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 90 seconds.
      GTY929556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Telltale Light Assembly
      *2 Airbag ECU Assembly
    2. Connect the connectors to the airbag ECU assembly.
    3. Connect the cable to the negative (-) auxiliary battery terminal and wait for at least 2 seconds.
    4. Turn the ignition switch to ON, and wait for at least 60 seconds.
    5. Clear the DTCs stored in memory.

      Refer to DTC CHECK / CLEAR [08/2020 - ]

      Body Electrical > SRS Airbag > Clear DTCs

    6. Turn the ignition switch off.
    7. Turn the ignition switch to ON, and wait for at least 60 seconds.
    8. Check for DTCs.

      Refer to DTC CHECK / CLEAR [08/2020 - ]

      Body Electrical > SRS Airbag > Trouble Codes

      Result

      Proceed to
      DTC B1660 is not output
      DTC B1660 is output

      HINT:

      Codes other than DTC B1660 may be output at this time, but they are not related to this check.

    Result:

    DTC B1660 is not output

    USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [11/2018 - ]

    Result:

    DTC B1660 is output

    REPLACE AIRBAG ECU ASSEMBLY. Refer to  REMOVAL [08/2020 - 12/2021]  , or refer to  REMOVAL [12/2021 - 10/2022]  , or refer to  REMOVAL [10/2022 - 10/2023]  , or refer to  REMOVAL [10/2023 - ]
