Home >> Toyota >> 2020 >> RAV4 XLE, AWD >> Repair and Diagnosis >> External Pages >> Different car >> Section 2 (Airbag System - Diagnostic Codes (1 Of 2)) >> Airbag System >> DTC B163B: Side Airbag Sensor Assembly No. 2 Lost Communication (LH); DTC B163C: Side Airbag Sensor Assembly No. 2 Initialization Error (LH); DTC B1699: No. 2 Side Satellite Sensor Bus LH Initialization Incomplete [08/2020 - ] >> Procedure

DTC B163B: Side Airbag Sensor Assembly No. 2 Lost Communication (LH); DTC B163C: Side Airbag Sensor Assembly No. 2 Initialization Error (LH); DTC B1699: No. 2 Side Satellite Sensor Bus LH Initialization Incomplete [08/2020 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota RAV4, 2024 Toyota RAV4, 2023 Toyota RAV4, 2022 Toyota RAV4, and 2021 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK CONNECTION OF CONNECTORS
    1. Turn the ignition switch off.
    2. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 90 seconds.
    3. Check that the connectors are properly connected to the airbag ECU assembly and floor side airbag sensor LH.

      Result

      Proceed to
      The connectors are properly connected
      The connectors are not properly connected

    Result:

    The connectors are not properly connected

    CONNECT CONNECTORS PROPERLY

    Result:

    The connectors are properly connected

    See step  2

  2. CHECK CONNECTORS
    1. Disconnect the connectors from the airbag ECU assembly and floor side airbag sensor LH.
    2. Check that the connectors (on the airbag ECU assembly side and floor side airbag sensor LH side) are not damaged.
      GTY816487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Floor Side Airbag Sensor LH
      *2 Airbag ECU Assembly
      *3 Floor Wire

      Result

      Proceed to
      The connectors are not deformed or damaged
      The connectors are deformed or damaged

    Result:

    The connectors are deformed or damaged

    REPLACE FLOOR WIRE

    Result:

    The connectors are not deformed or damaged

    See step  3

  3. CHECK FLOOR WIRE
    1. Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.

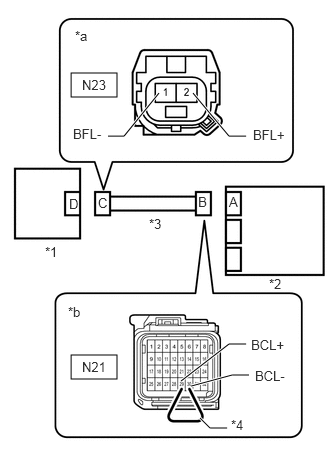

      GTY869388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Floor Side Airbag Sensor LH
      *2 Airbag ECU Assembly
      *3 Floor Wire
      *4 Service Wire
      *a Front view of wire harness connector
      (to Floor Side Airbag Sensor LH)
      *b Front view of wire harness connector
      (to Airbag ECU Assembly)
    2. Turn the ignition switch to ON.
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      N23-2 (BFL+) - Body ground Ignition switch ON Below 1 V
      N23-1 (BFL-) - Body ground Ignition switch ON Below 1 V
    4. Turn the ignition switch off.
    5. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 90 seconds.
    6. Using a service wire, connect terminals 29 (BCL+) and 30 (BCL-) of connector B.
      NOTE:

      Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

    7. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      N23-2 (BFL+) - N23-1 (BFL-) Always Below 1 Ω
    8. Disconnect the service wire from connector B.
    9. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      N23-2 (BFL+) - N23-1 (BFL-) Always 1 MΩ or higher
      N23-2 (BFL+) - Body ground Always 1 MΩ or higher
      N23-1 (BFL-) - Body ground Always 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE FLOOR WIRE

    Result:

    OK

    See step  4

  4. CHECK FLOOR SIDE AIRBAG SENSOR LH
    1. Connect the connectors to the airbag ECU assembly.
    2. Interchange the floor side airbag sensor LH with RH and connect the connectors to them.
      GTY856348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Floor Side Airbag Sensor RH
      *2 Airbag ECU Assembly
    3. Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
    4. Turn the ignition switch to ON, and wait for at least 60 seconds.
    5. Clear the DTCs stored in memory.

      Refer to DTC CHECK / CLEAR [08/2020 - ]

      Body Electrical > SRS Airbag > Clear DTCs

    6. Turn the ignition switch off.
    7. Turn the ignition switch to ON, and wait for at least 60 seconds.
    8. Check for DTCs.

      Refer to DTC CHECK / CLEAR [08/2020 - ]

      Body Electrical > SRS Airbag > Trouble Codes

      Result

      Result Proceed to
      DTC B163B, B163C or B1699 is output A
      DTC B162B, B162C or B1694 is output B
      DTCs B162B, B162C, B163B, B163C, B1694 and B1699 are not output C

      HINT:

      Codes other than DTC B162B, B162C, B163B, B163C, B1494 and B1499 may be output at this time, but they are not related to this check.

    9. Turn the ignition switch off.
    10. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 90 seconds.
    11. Return the floor side airbag sensor RH and LH to their original positions and connect the connectors to them.

    Result:

    REPLACE AIRBAG ECU ASSEMBLY

    Refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]

    Result:

    REPLACE FLOOR SIDE AIRBAG SENSOR LH

    Refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]

    Result:

    USE SIMULATION METHOD TO CHECK

    Refer to HOW TO PROCEED WITH TROUBLESHOOTING [11/2018 - ]
