Installation [11/2018 - ]: Procedure
- INSTALL NO. 1 FUEL TANK PROTECTOR SUB-ASSEMBLY
- Attach the 4 clips and install the No. 1 fuel tank protector sub-assembly to the fuel tank assembly.
- INSTALL NO. 1 FUEL TANK CUSHION
- Install 2 new No. 1 fuel tank cushions to the fuel tank assembly.
- INSTALL FUEL TANK MAIN TUBE SUB-ASSEMBLY
- Attach the clamp and install the fuel tank main tube sub-assembly to the fuel tank assembly.
- INSTALL FUEL TANK ASSEMBLY WARNING:
The fuel tank assembly is very heavy. Be sure to follow the procedure described in the appropriate service information , or the fuel tank assembly may fall off the engine lifter.
- Set the fuel tank assembly on an engine lifter.NOTE:
Using height adjustment attachments and plate lift attachments, keep the fuel tank assembly horizontal.

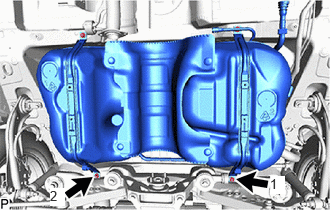

- Using the engine lifter, slowly raise the fuel tank assembly, and temporarily install the fuel tank assembly and 2 fuel tank band sub-assemblies with the 2 bolts in the order shown in the illustration.NOTE:
- Be careful not to drop the fuel tank assembly.
- When installing the fuel tank assembly, tilt it slightly to prevent it from interfering with the surrounding parts.

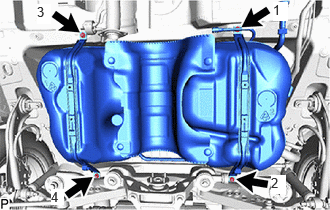

- Using SST, tighten the 4 bolts in the order shown in the illustration.
- SST: 09961-00950
Torque
Specified tightening torque
45 N.m (459 kgf/cm, 33 ft.lbf)
HINT:
- Using SST, install the rear side of the fuel tank band.
- Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.
Refer to PRECAUTION [11/2018 - ]
- When using SST (fulcrum length of 150 mm (5.91 in.)) + torque wrench (fulcrum length of 180 mm (7.09 in.)): 24.5 N.m (250 kgf/cm, 18 ft.lbf)
*a LH Side *b RH Side *c Torque Wrench Fulcrum Length
- Set the fuel tank assembly on an engine lifter.
- CONNECT FUEL TANK FILLER PIPE SUB-ASSEMBLY
- Connect the fuel tank filler pipe sub-assembly to the fuel tank filler pipe assembly.
Refer to PRECAUTION [11/2018 - 08/2020] , or refer to PRECAUTION [08/2020 - ]
- Connect the fuel tank filler pipe sub-assembly to the fuel tank filler pipe assembly.
- CONNECT FUEL TANK BREATHER TUBE
- Connect the fuel tank breather tube to the fuel tank filler pipe assembly.
Refer to PRECAUTION [11/2018 - 08/2020] , or refer to PRECAUTION [08/2020 - ]
- Connect the fuel tank breather tube to the fuel tank filler pipe assembly.
- CONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY
- Connect the fuel tank main tube sub-assembly to the fuel tube.
Refer to PRECAUTION [11/2018 - 08/2020] , or refer to PRECAUTION [08/2020 - ]
- Connect the fuel tank main tube sub-assembly to the fuel tube.
- CONNECT FUEL TANK VENT TUBE
- Attach the clamp and connect the fuel tank vent tube.
- Connect the fuel tank vent tube to the fuel tank vent hose sub-assembly.
Refer to PRECAUTION [11/2018 - 08/2020] , or refer to PRECAUTION [08/2020 - ]
- INSTALL NO. 1 FUEL TANK PROTECTOR
- Install the No. 1 fuel tank protector to the fuel tank band with the 2 nuts.
Torque: 10.5 N.m (107 kgf/cm, 8 ft.lbf)
- Install the No. 1 fuel tank protector to the fuel tank band with the 2 nuts.
- INSTALL NO. 1 FLOOR UNDER COVER
- Install the No. 1 floor under cover to the body and tighten the nut.
- Attach the 3 clips and install the 2 bolts.
Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)
- INSTALL FRONT FLOOR COVER RH
- Install the front floor cover RH to the body and tighten the 3 nuts.
- Attach the 2 clips and install the 2 bolts and 4 screws.
Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)
- INSTALL NO. 2 FLOOR UNDER COVER
- Install the No. 2 floor under cover to the body and tighten the 4 nuts.
- Attach the 3 clips and install the 2 bolts.
Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)
- INSTALL FRONT FLOOR COVER LH
- Install the front floor cover LH to the body and tighten the 3 nuts.
- Attach the 3 clips and install the 2 bolts and 5 screws.
Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)
- INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 99 [11/2018 - 08/2020] , or refer to PROCEDURE - Step 99 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 99 [12/2021 - ]
- INSTALL NO. 1 ENGINE UNDER COVER
Refer to PROCEDURE - Step 100 [11/2018 - 08/2020] , or refer to PROCEDURE - Step 100 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 100 [12/2021 - ]
- INSTALL FRONT FENDER FRONT SPLASH SHIELD RH
Refer to PROCEDURE - Step 102 [11/2018 - 08/2020] , or refer to PROCEDURE - Step 102 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 102 [12/2021 - ]
- INSTALL FRONT FENDER FRONT SPLASH SHIELD LH
Refer to PROCEDURE - Step 101 [11/2018 - 08/2020] , or refer to PROCEDURE - Step 101 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 101 [12/2021 - ]
- INSTALL PROPELLER SHAFT ASSEMBLY (for AWD)
Refer to INSTALLATION [11/2018 - ]
- INSTALL TAIL EXHAUST PIPE ASSEMBLY
Refer to INSTALLATION [11/2018 - 02/2019] , or refer to INSTALLATION [02/2019 - 08/2020] , or refer to INSTALLATION [08/2020 - ]
- ADD FUEL
- INSTALL FUEL SUCTION WITH PUMP AND GAUGE TUBE ASSEMBLY
Refer to INSTALLATION [11/2018 - ]
- INSTALL FUEL TANK VENT TUBE ASSEMBLY
Refer to INSTALLATION [11/2018 - ]
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [11/2018 - 02/2019] , or refer to INITIALIZATION [02/2019 - 10/2019] , or refer to INITIALIZATION [10/2019 - 06/2020] , or refer to INITIALIZATION [06/2020 - 08/2020] , or refer to INITIALIZATION [08/2020 - 12/2021] , or refer to INITIALIZATION [12/2021 - 10/2022] , or refer to INITIALIZATION [10/2022 - 10/2023] , or refer to INITIALIZATION [10/2023 - ]
