Removal [08/2020 - 10/2022]: Procedure

Refer to PROCEDURE - Step 1

Refer to REMOVAL [08/2020 - ]

• for 100 A, 130 A Type:

  Refer to REMOVAL [08/2020 - 10/2022]

• for 150 A Type:

  Refer to REMOVAL [08/2020 - 10/2022]

• for VALEO Made:

  Refer to REMOVAL [08/2020 - 10/2022]

1. Slide the clip and disconnect the No. 2 radiator hose from the water inlet with thermostat sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the water inlet with thermostat sub-assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

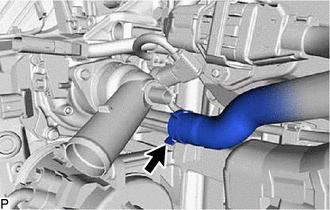

2. Slide the clip and disconnect the No. 7 water by-pass hose from the water inlet with thermostat sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • Do not apply force to the water inlet with thermostat sub-assembly when disconnecting the No. 7 water by-pass hose.
   • Do not damage the water inlet with thermostat sub-assembly.

   HINT:

   When disconnecting the No. 7 water by-pass hose, slide the clip, rotate the hose and pull it straight off the pipe.

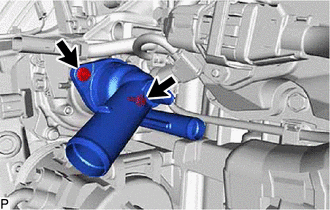

3. Using an 8 mm socket wrench, remove the 2 bolts and water inlet with thermostat sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Remove the gasket from the water inlet with thermostat sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
