Removal [10/2019 - 08/2020]: Procedure

  1. REMOVE BATTERY

    Refer to REMOVAL [10/2019 - 08/2020]

  2. REMOVE ECM

    Refer to REMOVAL [11/2018 - 08/2020]

  3. REMOVE BATTERY CLAMP SUB-ASSEMBLY

    Refer to PROCEDURE - Step 25

  4. REMOVE FRONT WHEEL LH
  5. REMOVE FRONT FENDER FRONT SPLASH SHIELD RH

    Refer to PROCEDURE - Step 9

  6. REMOVE FRONT FENDER FRONT SPLASH SHIELD LH

    Refer to PROCEDURE - Step 8

  7. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 10

  8. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 11

  9. REMOVE FRONT FENDER APRON SEAL LH

    Refer to PROCEDURE - Step 12

  10. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 1

  11. REMOVE FLOW SHUTTING VALVE (NO. 1 WATER BY-PASS HOSE)
    1. Detach the 3 clamps and remove the transmission breather clamp.
      GTY849753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

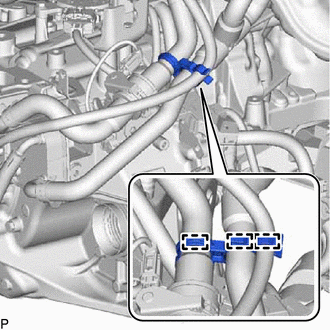

    2. Detach the 3 clamps and remove the hose clamp.
      GTY849754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

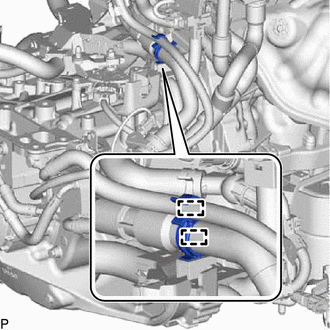

    3. Detach the 2 clamps and disconnect the flow shutting valve (No. 1 water by-pass hose) and transmission breather hose from the hose clamp.
      GTY849755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

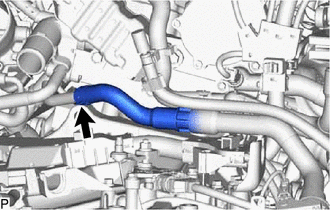

    4. Slide the clip and disconnect the flow shutting valve (No. 1 water by-pass hose) from the water outlet.
      GTY849771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use a container to catch any engine coolant which flows out of the flow shutting valve (No. 1 water by-pass hose) and water outlet.

    5. Slide the clip and disconnect the flow shutting valve (No. 1 water by-pass hose) from the transmission oil cooler.
      GTY849772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use a container to catch any engine coolant which flows out of the flow shutting valve (No. 1 water by-pass hose) and transmission oil cooler.

    6. Disconnect the flow shutting valve connector.
      GTY849773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the bolt and flow shutting valve (No. 1 water by-pass hose).
      GTY849774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
