Removal [12/2021 - ]: Procedure

  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to REMOVAL [11/2018 - ]

  2. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  3. REMOVE MOBILE WIRELESS CHARGER CRADLE ASSEMBLY

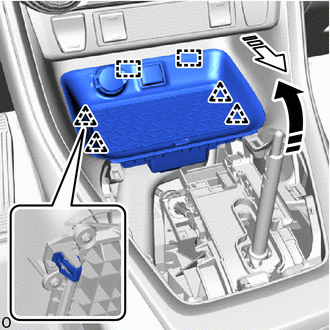

    1. Rotate in the direction indicated by the arrow (1) shown in the illustration to detach the clip.
      GTY1113442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Pull in the direction indicated by the arrow (2) shown in the illustration to detach the guide and remove the mobile wireless charger cradle assembly.
    3. w/ Radio Receiver:

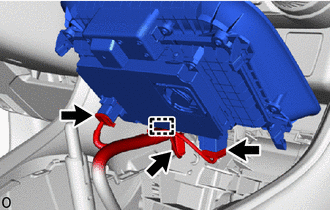

      1. Detach the clamp and disconnect the 3 connectors.
        GTY1110853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. w/o Radio Receiver:
      1. Detach the clamp and disconnect the 2 connectors.
        GTY1117995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 1 STEREO JACK ADAPTER ASSEMBLY

    Refer to PROCEDURE - Step 5

  5. REMOVE NO. 1 POWER OUTLET SOCKET ASSEMBLY

    See step  5

  6. REMOVE NO. 1 POWER OUTLET SOCKET COVER

    See step  6
