Installation [11/2018 - ]: Procedure

INSTALL REAR NO. 1 DIFFERENTIAL MOUNT CUSHION

Using SST, install a new rear No. 1 differential mount cushion.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

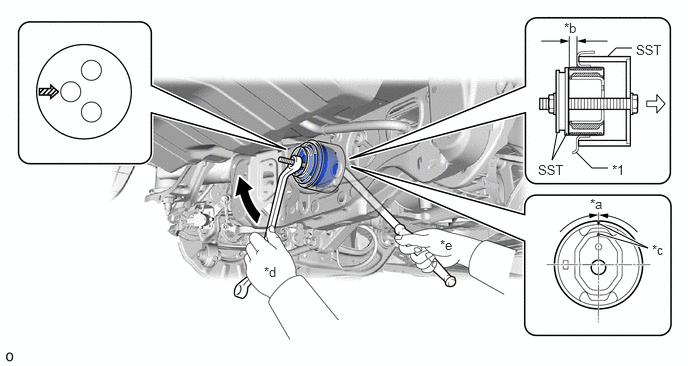

*1	Rear Suspension Member Sub-assembly	-	-
*a	-3° to 3°	*b	9.8 to 10.8 mm (0.3858 to 0.4252 in.)
*c	Protrusion	*d	Turn
*e	Hold	-	-
	Turning Direction		Front of Vehicle
	SST Bolt Position	-	-

NOTE:

Make sure that the rear No. 1 differential mount cushion is aligned within 3° from the center.
Install the rear No. 1 differential mount cushion so that the protrusion is positioned as shown in the illustration.
Be sure to use the correct combination of SST.
Before using SST, apply grease to SST bolt.
Temporarily install the rear No. 1 differential mount cushion to the rear suspension member sub-assembly in order to prevent it from tilting, and then install SST.
Make sure that SST contacts the entire circumference of the rear No. 1 differential mount cushion.
Do not tilt the bolts of SST.

INSTALL TORQUE VECTORING DIFFERENTIAL CARRIER ASSEMBLY (for Torque Vectoring Differential)
Refer to INSTALLATION [11/2018 - ]
INSTALL REAR DIFFERENTIAL CARRIER ASSEMBLY (except Torque Vectoring Differential)
Refer to INSTALLATION [11/2018 - ]
