System Diagram [11/2018 - 12/2021]

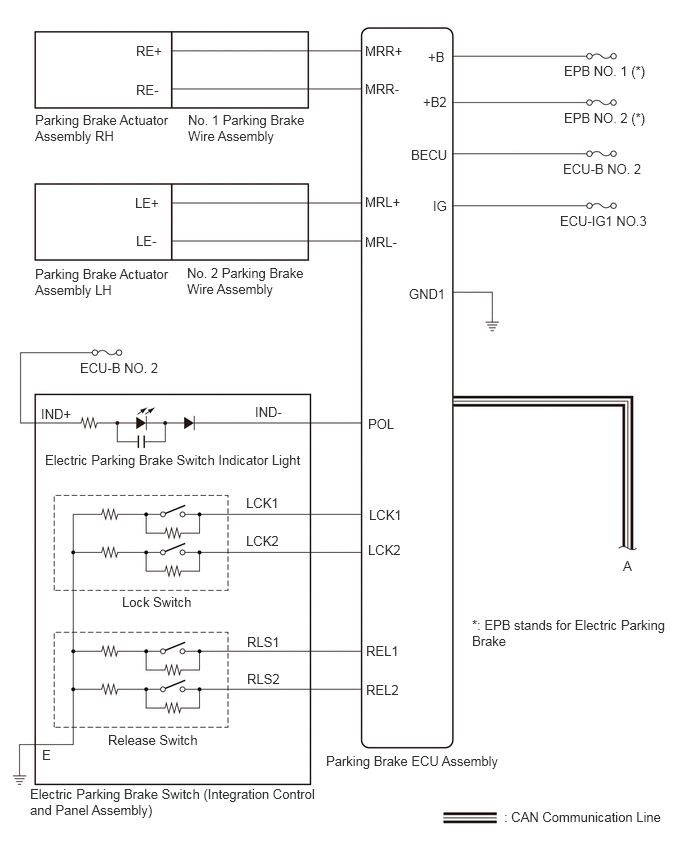

Fig 1: Electric Parking Brake System Diagram (W/O Vacuum Brake Booster) (1 Of 2)
GTY923696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

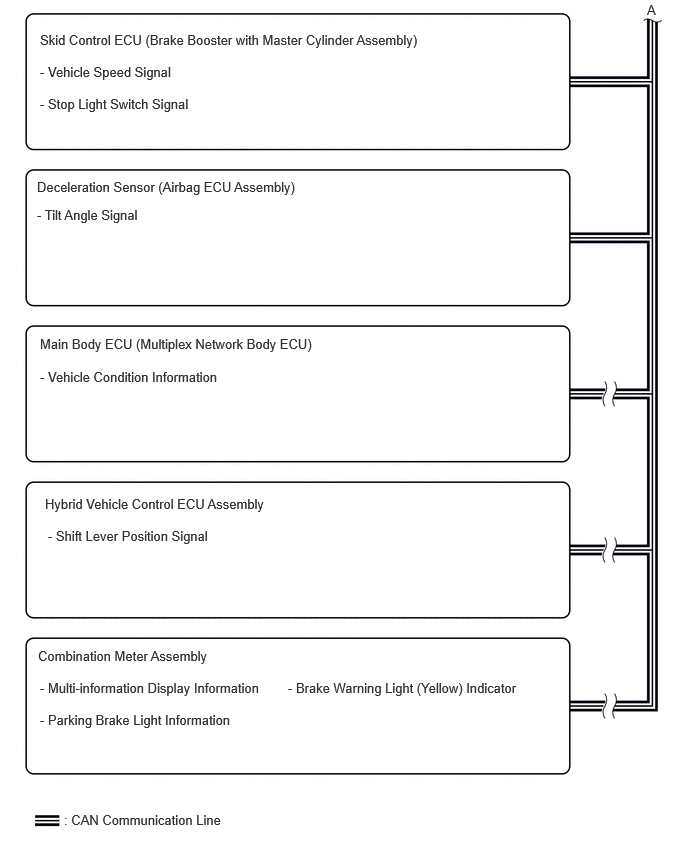

Fig 2: Electric Parking Brake System Diagram (W/O Vacuum Brake Booster) (2 Of 2)
GTY1114710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
