Components [11/2018 - ]

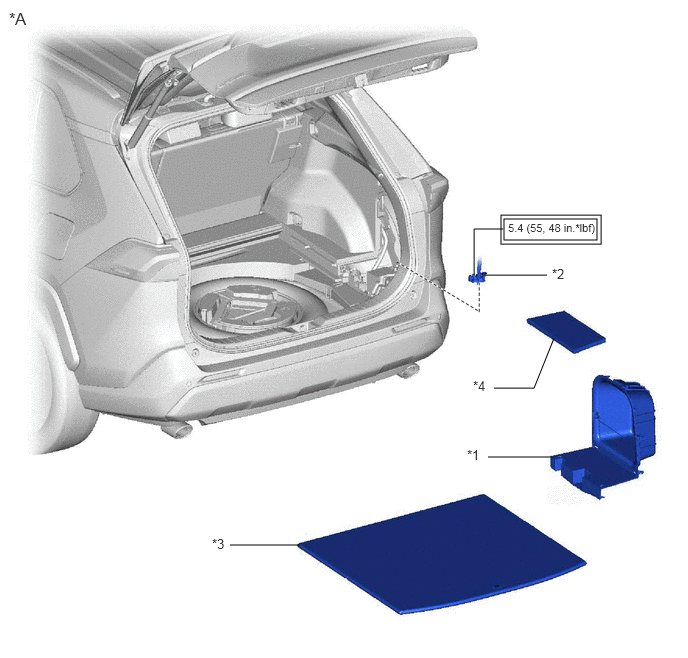

Fig 1: Kick Sensor Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for HV Model	-	-
*1	BATTERY HOLE COVER	*2	NEGATIVE AUXILIARY BATTERY TERMINAL
*3	DECK BOARD ASSEMBLY	*4	REAR NO. 2 FLOOR BOARD
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-

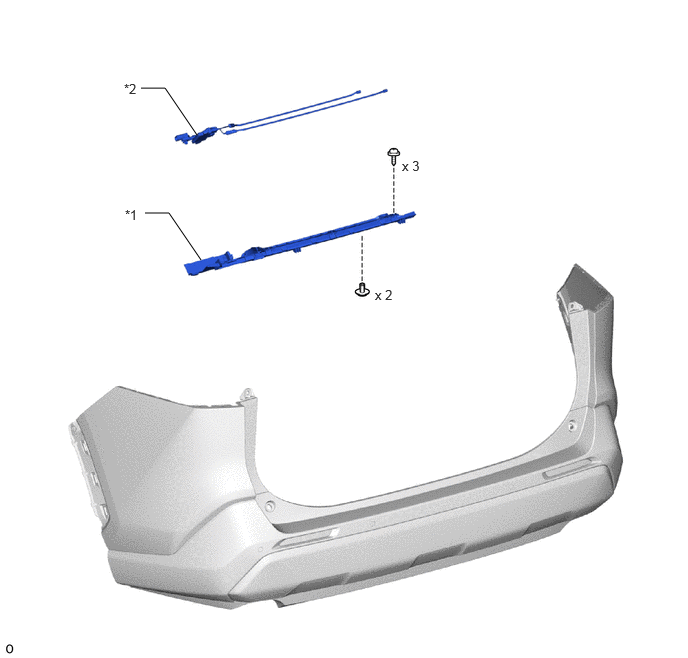

Fig 2: Kick Sensor Replacement Components (2 Of 2)

KICK DOOR CONTROL BRACKET

KICK DOOR CONTROL SENSOR
