(Door / Hatch) - Service Information (3 Of 4)
>>
Rear Door Opening Trim Weatherstrip
>>
Components [11/2018 - ]
Components [11/2018 - ]

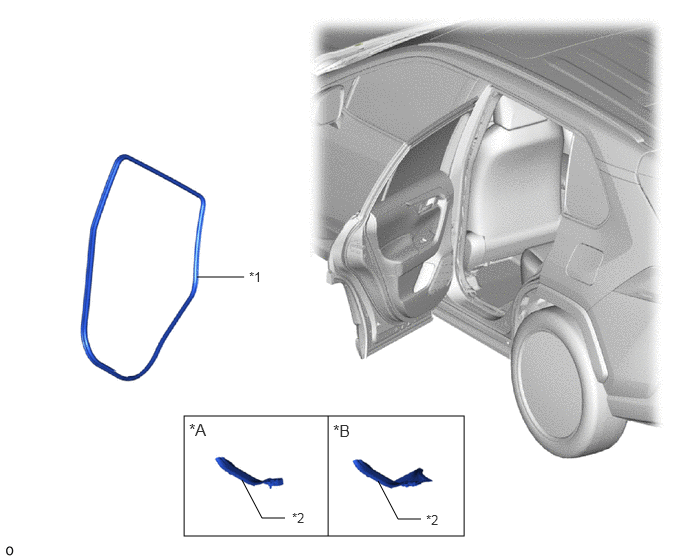

Fig 1: Rear Door Opening Trim Weatherstrip Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A
for Gasoline Model
*B
for HV Model
*1
REAR DOOR OPENING TRIM WEATHERSTRIP LH
*2
REAR DOOR SCUFF PLATE LH
