Components [11/2018 - ]

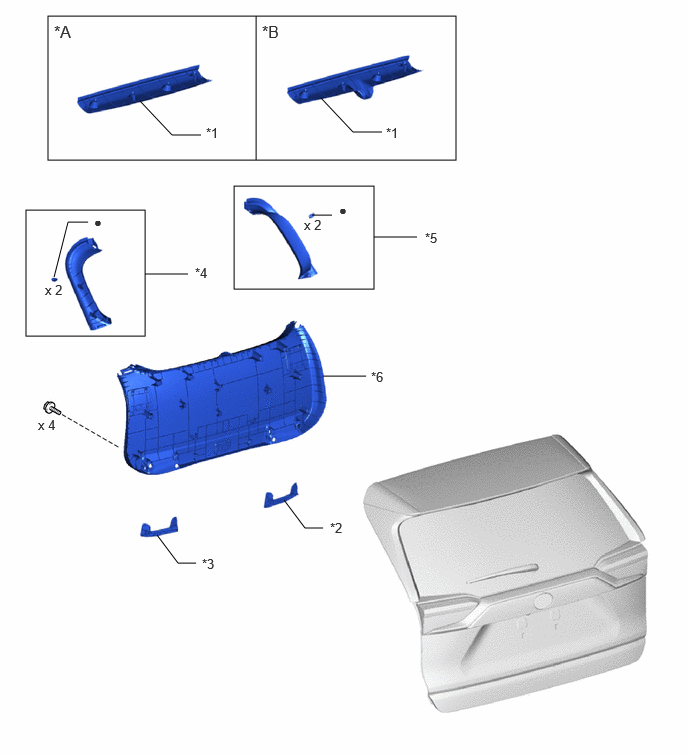

Fig 1: Power Back Door Drive Unit Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/o Digital Inner Mirror	*B	w/ Digital Inner Mirror
*1	BACK DOOR CENTER GARNISH	*2	BACK DOOR GRIP
*3	BACK DOOR GRIP BASE	*4	BACK DOOR SIDE GARNISH LH
*5	BACK DOOR SIDE GARNISH RH	*6	BACK DOOR TRIM BOARD ASSEMBLY
•	Non-reusable part	-	-

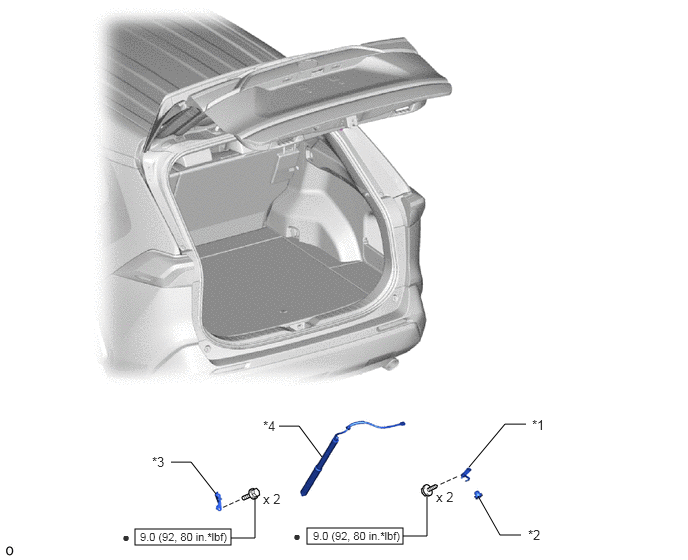

Fig 2: Power Back Door Drive Unit Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	BACK DOOR LOWER DAMPER STAY BRACKET LH	*2	BACK DOOR STAY STOPPER
*3	BACK DOOR UPPER DAMPER STAY BRACKET LH	*4	POWER BACK DOOR UNIT ASSEMBLY LH
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
