Components [11/2018 - ]

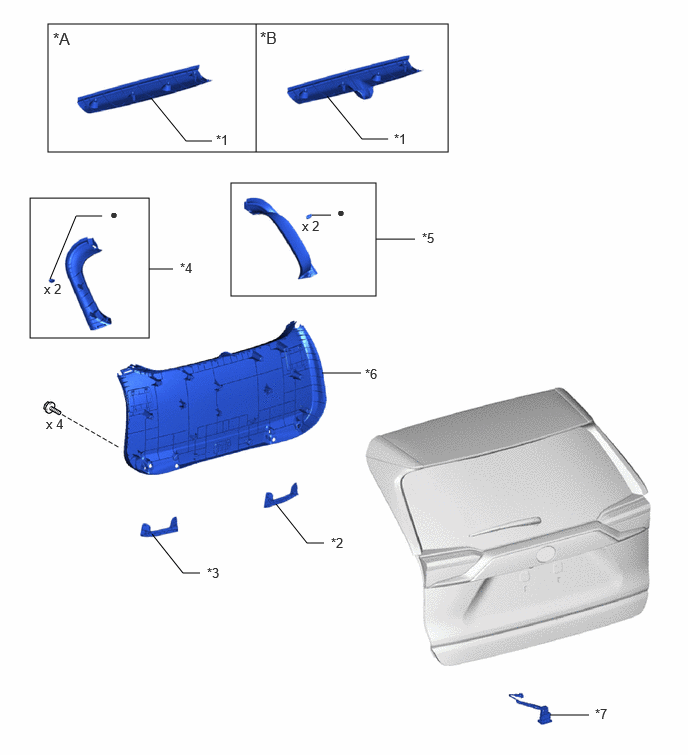

Fig 1: Power Back Door Closer Switch Replacement Components
GTY1176868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A w/o Digital Inner Mirror *B w/ Digital Inner Mirror
*1 BACK DOOR CENTER GARNISH *2 BACK DOOR GRIP
*3 BACK DOOR GRIP BASE *4 BACK DOOR SIDE GARNISH LH
*5 BACK DOOR SIDE GARNISH RH *6 BACK DOOR TRIM BOARD ASSEMBLY
*7 NO. 1 POWER BACK DOOR CONTROL SWITCH - -
Non-reusable part - -
