Components [10/2023 - ]

Fig 1: Back Door Replacement Components [10/2023 - ] (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/o Digital Inner Mirror	*B	w/ Digital Inner Mirror
*1	BACK DOOR ASSIST GRIP LH	*2	BACK DOOR ASSIST GRIP RH
*3	BACK DOOR CENTER GARNISH	*4	BACK DOOR GRIP
*5	BACK DOOR GRIP BASE	*6	BACK DOOR NO. 2 SERVICE HOLE COVER
*7	BACK DOOR SERVICE HOLE COVER LH	*8	BACK DOOR SERVICE HOLE COVER RH
*9	BACK DOOR SIDE GARNISH LH	*10	BACK DOOR SIDE GARNISH RH
*11	BACK DOOR TRIM BOARD ASSEMBLY	-	-
•	Non-reusable part	-	-

Fig 2: Back Door Replacement Components [10/2023 - ] (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Power Back Door	-	-
*1	NO. 1 POWER BACK DOOR CONTROL SWITCH	*2	POWER BACK DOOR SENSOR ASSEMBLY LH
*3	POWER BACK DOOR SENSOR ASSEMBLY RH	*4	GROMMET

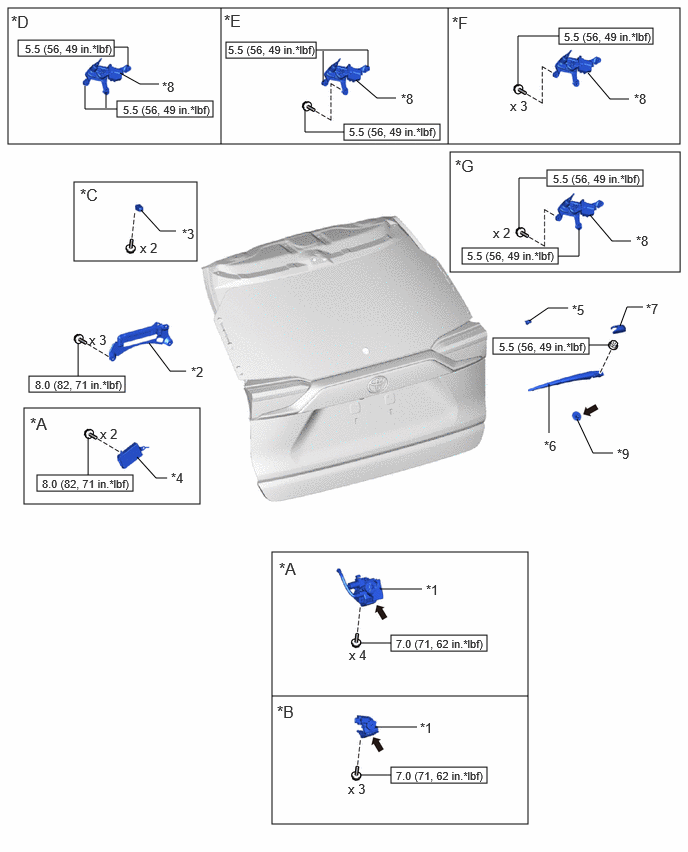

Fig 3: Back Door Replacement Components With Torque Specifications [10/2023 - ] (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/ Power Back Door	*B	w/o Power Back Door
*C	w/ Digital Inner Mirror	*D	for Type A
*E	for Type B	*F	for Type C
*G	for Type D	-	-
*1	BACK DOOR LOCK ASSEMBLY	*2	BACK DOOR WEIGHT
*3	INNER MIRROR CAMERA ASSEMBLY	*4	MULTIPLEX NETWORK DOOR ECU
*5	REAR WASHER NOZZLE	*6	REAR WIPER ARM AND BLADE ASSEMBLY
*7	REAR WIPER ARM HEAD CAP	*8	REAR WIPER MOTOR ASSEMBLY
*9	REAR WIPER MOTOR GROMMET	-	-
	N.m (kgf/cm, ft.lbf): Specified torque		MP grease

Fig 4: Back Door Replacement Components With Torque Specifications [10/2023 - ] (4 Of 5)

Callout	Description	Callout	Description
*A	w/ Rear View Monitor System	*B	w/o Rear View Monitor System
*1	BACK DOOR LOWER OUTSIDE GARNISH SUB-ASSEMBLY	*2	BACK DOOR OPENER SWITCH ASSEMBLY
*3	BACK DOOR OUTSIDE GARNISH PROTECTOR	*4	BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY
*5	LICENSE PLATE LIGHT ASSEMBLY LH	*6	LICENSE PLATE LIGHT ASSEMBLY RH
*7	REAR LIGHT ASSEMBLY LH	*8	REAR LIGHT ASSEMBLY RH
*9	TELEVISION CAMERA ASSEMBLY	*10	SCREW GROMMET
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

Fig 5: Back Door Replacement Components With Torque Specifications [10/2023 - ] (5 Of 5)

Callout	Description	Callout	Description
*A	w/ Power Back Door	*B	w/o Power Back Door
*1	BACK DOOR DUST PROOF SEAL	*2	BACK DOOR LOWER DAMPER STAY BRACKET LH
*3	BACK DOOR LOWER DAMPER STAY BRACKET RH	*4	BACK DOOR LOWER STOPPER CUSHION
*5	BACK DOOR STAY ASSEMBLY LH	*6	BACK DOOR STAY ASSEMBLY RH
*7	BACK DOOR STAY STOPPER	*8	BACK DOOR UPPER DAMPER STAY BRACKET LH
*9	BACK DOOR UPPER DAMPER STAY BRACKET RH	*10	POWER BACK DOOR UNIT ASSEMBLY LH
*11	POWER BACK DOOR UNIT ASSEMBLY RH	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
