Removal [11/2018 - ]: Procedure

REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY
Refer to PROCEDURE - Step 1
REMOVE REAR SEAT CUSHION LOCK HOOK
Refer to PROCEDURE - Step 2
REMOVE REAR DOOR SCUFF PLATE LH (for HV Model)
Refer to PROCEDURE - Step 8 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 8 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 8 [08/2020 - 10/2023] , or refer to PROCEDURE - Step 9 [10/2023 - ]
REMOVE REAR DOOR SCUFF PLATE RH (for HV Model)
HINT:

Use the same procedure described for the LH side.

Refer to PROCEDURE - Step 8 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 8 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 8 [08/2020 - 10/2023] , or refer to PROCEDURE - Step 9 [10/2023 - ]
REMOVE NO. 2 BATTERY SERVICE COVER BOARD (for HV Model)
Refer to PROCEDURE - Step 6
REMOVE NO. 3 BATTERY SERVICE COVER BOARD (for HV Model)
Refer to PROCEDURE - Step 4
REMOVE BATTERY SERVICE COVER BOARD (for HV Model)
Refer to PROCEDURE - Step 7
REMOVE REAR SEAT CUSHION LEG SUB-ASSEMBLY (for HV Model)
Refer to PROCEDURE - Step 14

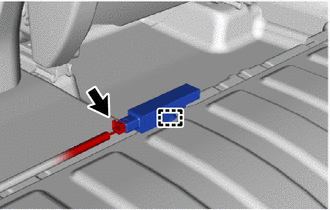

REMOVE NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (for Gasoline Model)

Disconnect the connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Detach the clamp and remove the No. 2 indoor electrical key antenna assembly.
NOTE:
Do not reuse parts if dropped or subjected to any strong impact.

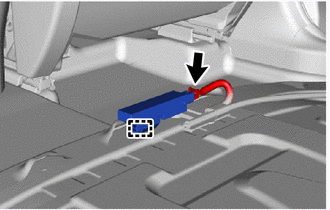

REMOVE NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (for HV Model)

Disconnect the connector.

Detach the clamp and remove the No. 1 indoor electrical key antenna assembly.
NOTE:
Do not reuse parts if dropped or subjected to any strong impact.
