Removal [11/2018 - ]: Procedure

REMOVE BACK DOOR CENTER GARNISH
Refer to PROCEDURE - Step 1 [11/2018 - 10/2023] , or refer to PROCEDURE - Step 1 [10/2023 - ]
REMOVE BACK DOOR SIDE GARNISH LH
Refer to PROCEDURE - Step 2 [11/2018 - 10/2023] , or refer to PROCEDURE - Step 2 [10/2023 - ]
REMOVE BACK DOOR SIDE GARNISH RH
HINT:

Use the same procedure described for the LH side.
REMOVE BACK DOOR GRIP BASE
Refer to PROCEDURE - Step 4 [11/2018 - 10/2023] , or refer to PROCEDURE - Step 4 [10/2023 - ]
REMOVE BACK DOOR GRIP
HINT:

Use the same procedure described for the back door grip base.
REMOVE BACK DOOR TRIM BOARD ASSEMBLY
Refer to PROCEDURE - Step 6 [11/2018 - 10/2023] , or refer to PROCEDURE - Step 6 [10/2023 - ]

REMOVE REAR WIPER ARM HEAD CAP

Detach the claw and open the rear wiper arm head cap as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

Detach the claw and remove the rear wiper arm head cap.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE REAR WIPER ARM AND BLADE ASSEMBLY

Remove the nut and rear wiper arm and blade assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE REAR WIPER MOTOR ASSEMBLY

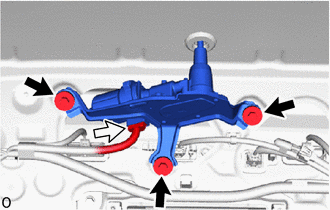

for Type A:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Bolt
	Connector

Disconnect the connector.
Loosen the 3 bolts and remove the rear wiper motor assembly.
NOTE:
Do not subject the rear wiper motor assembly to strong impacts or force, and do not drop it.

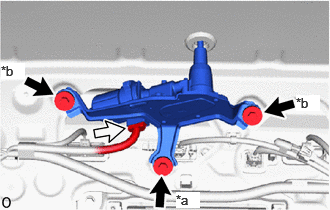

for Type B:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the connector.
Remove the bolt (A).
Loosen the 2 bolts (B) and remove the rear wiper motor assembly.
NOTE:
Do not subject the rear wiper motor assembly to strong impacts or force, and do not drop it.

	Bolt
	Connector

for Type C:

Disconnect the connector.
Remove the 3 bolts and remove the rear wiper motor assembly.
NOTE:
Do not subject the rear wiper motor assembly to strong impacts or force, and do not drop it.

for Type D:

Disconnect the connector.
Remove the 2 bolts (A).
Loosen the bolt (B) and remove the rear wiper motor assembly.
NOTE:
Do not subject the rear wiper motor assembly to strong impacts or force, and do not drop it.

REMOVE REAR WIPER MOTOR GROMMET

Remove the rear wiper motor grommet.
