Removal [10/2019 - 10/2022]: Procedure

  1. PRECAUTION
    NOTE:
    • When replacing the radio and display receiver assembly or navigation ECU, always replace it with a new one. If a radio and display receiver assembly or navigation ECU which was installed to another vehicle is used, the following may occur:
      • A communication malfunction DTC may be stored.
      • The radio and display receiver assembly or navigation ECU may not operate normally.
    • When performing the following work, the navigation system may restart when turning the ignition switch ACC (due to radio and display receiver assembly and navigation ECU certification).
      • Repair or replace the negative (-) auxiliary battery terminal due to it being disconnected or depleted.
      • The radio and display receiver assembly or navigation ECU replacement or removal and installation.

    Refer to PRECAUTION [10/2019 - 10/2022]

  2. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [11/2018 - 12/2021] , or refer to REMOVAL [12/2021 - ]

  3. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

    Refer to PROCEDURE - Step 1

  4. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 14 [10/2019 - 08/2020] , or refer to PROCEDURE - Step 15 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 15 [12/2021 - 10/2022]

  5. REMOVE NAVIGATION ECU WITH BRACKET (w/o Mayday System)
    1. for Type A:
      1. Remove the 2 bolts.
        GTY905306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Bolt
        Connector
      2. Disconnect the 3 connectors and detach the clamp.
      3. Place your hand at the position shown in the illustration, and then while bending the instrument panel safety pad assembly, detach the guide and remove the navigation ECU with bracket.
        GTY922312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Place Hand Here
        Remove in this Direction
      4. Disconnect each connector.

        HINT:

        Remove the navigation ECU with bracket together with the No. 2 navigation wire.

    2. for Type B:
      1. Remove the 2 bolts.
        GTY925984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Bolt
        Connector
      2. Disconnect the 3 connectors and detach the clamp.
      3. Place your hand at the position shown in the illustration, and then while bending the instrument panel safety pad assembly, detach the guide and remove the navigation ECU with bracket.
        GTY843912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Place Hand Here
        Remove in this Direction
      4. Disconnect each connector.

        HINT:

        Remove the navigation ECU with bracket together with the No. 2 navigation wire.

  6. REMOVE NAVIGATION ECU WITH BRACKET (w/ Mayday System)
    1. Remove the 2 bolts.

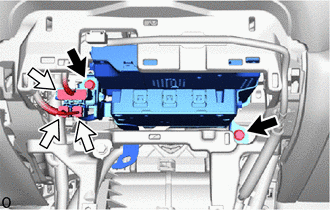

      GTY879075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Connector
    2. Disconnect the 3 connectors.
    3. Place your hand at the position shown in the illustration, and then while bending the instrument panel safety pad assembly, detach the guide and remove the navigation ECU with bracket.
      GTY881691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction
    4. Disconnect the 3 connectors.

      HINT:

      Remove the navigation ECU with bracket together with the No. 2 navigation wire, No. 2 antenna cord sub-assembly and telephone ECU wire (to transceiver).

  7. REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY
    1. w/o Mayday System:
      1. for Type A:
        1. Disconnect the connector.
        2. Detach the clamp and remove the No. 2 antenna cord sub-assembly.
        GTY918198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. for Type B:
        GTY860901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        1. Disconnect the connector.
        2. Detach the clamp and remove the No. 2 antenna cord sub-assembly.
    2. w/ Mayday System:
      1. Disconnect the 4 connectors.
        GTY860916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Detach the clamp and remove the No. 2 antenna cord sub-assembly.
  8. REMOVE NO. 2 NAVIGATION WIRE
    1. w/o Mayday System:
      1. for Type A:
        1. Disconnect the connector.
        2. Detach the clamp and remove the No. 2 navigation wire.
        GTY918197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. for Type B:
        GTY931189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        1. Disconnect the connector.
        2. Detach the clamp and remove the No. 2 navigation wire.
    2. w/ Mayday System:
      1. Disconnect the connector.

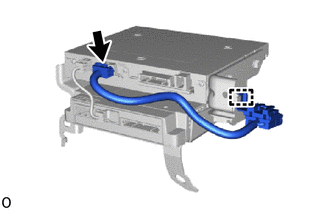

        GTY860913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Detach the clamp and remove the No. 2 navigation wire.
  9. REMOVE TELEPHONE ECU WIRE (TO TRANSCEIVER) (w/ Mayday System)
    1. Disconnect the 2 connectors.
      GTY860917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the clamp and remove the telephone ECU wire (to transceiver).
  10. REMOVE NO. 1 MULTI-MEDIA MODULE BRACKET
    1. w/o Mayday System:
      1. for Type A:
        GTY918196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        1. Remove the 2 screws and No. 1 multi-media module bracket.
      2. for Type B:
        GTY860902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        1. Remove the 2 screws and No. 1 multi-media module bracket.
    2. w/ Mayday System:
      1. Remove the 3 screws and No. 1 multi-media module bracket.
        GTY860930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE NO. 2 MULTI-MEDIA MODULE BRACKET
    1. w/o Mayday System:
      1. for Type A:
        1. Remove the 2 screws and No. 2 multi-media module bracket.
        GTY918195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. for Type B:
        GTY860894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        1. Remove the 2 screws and No. 2 multi-media module bracket.
    2. GTY931196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      w/ Mayday System:

      1. Remove the 4 screws and No. 2 multi-media module bracket.
  12. REMOVE NAVIGATION ECU
