System Diagram [10/2019 - 08/2020]

HINT:

Inspect the communication function by CAN communication system.

1. for HV Model:

   Refer to SYSTEM DIAGRAM [02/2019 - 06/2020] , or refer to SYSTEM DIAGRAM [06/2020 - 08/2020]

2. for Gasoline Model:

   Refer to SYSTEM DIAGRAM [11/2018 - 08/2020]

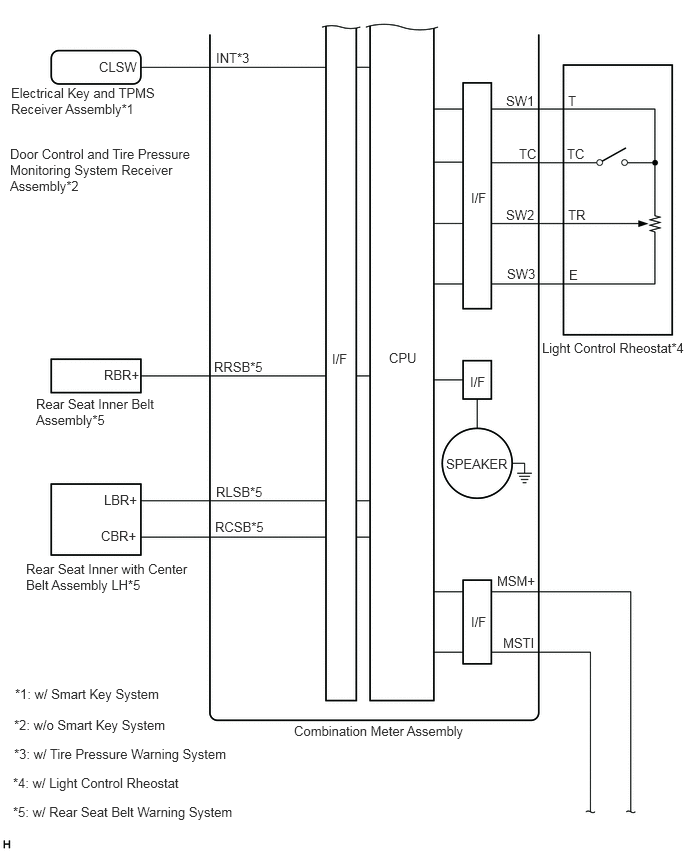

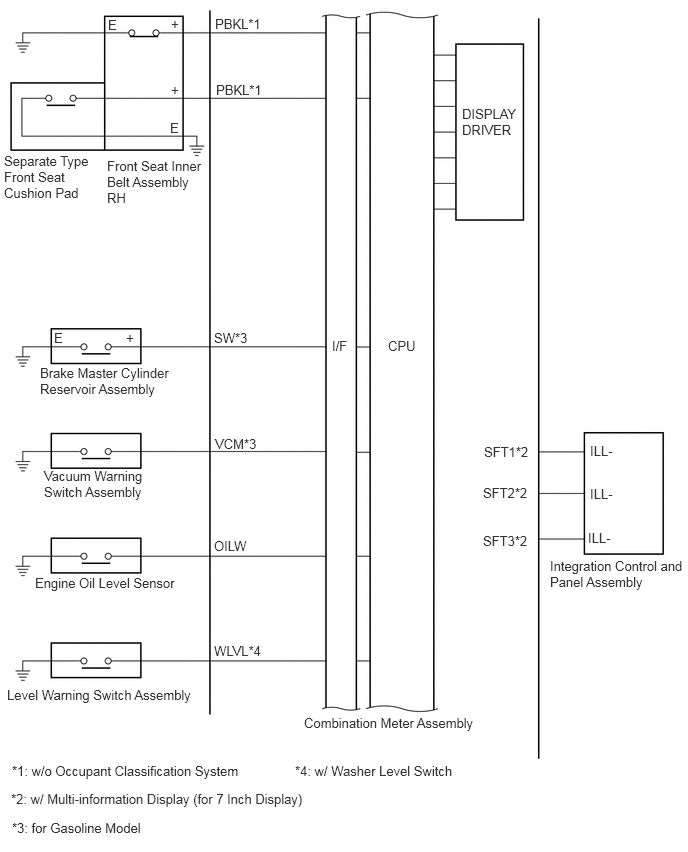

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Speed Signal Circuit

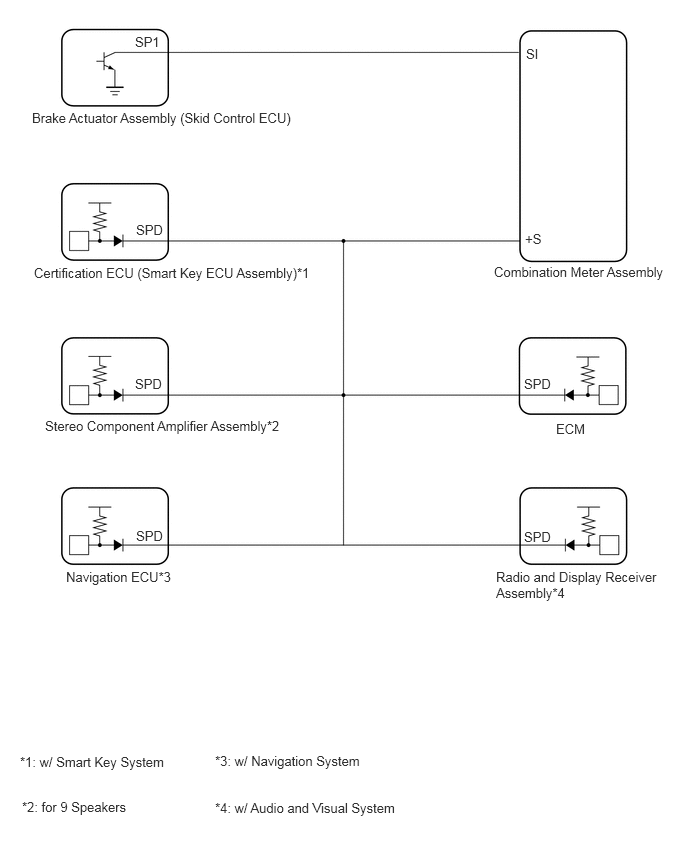

   for Gasoline Model:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

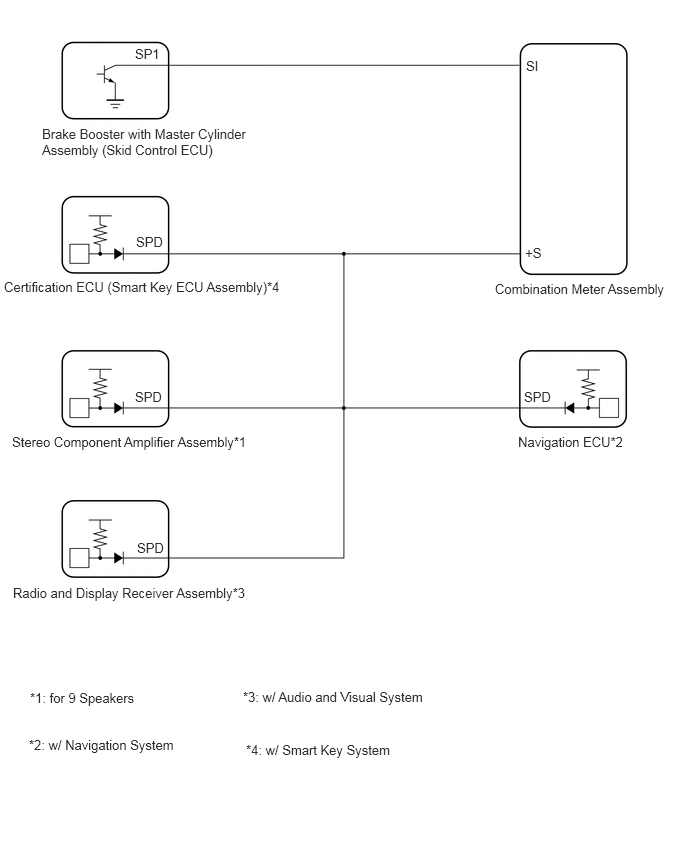

   for HV Model:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Turn Signal Light Circuit (w/ Headlight ECU)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Turn Signal Light Circuit (w/o Headlight ECU)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

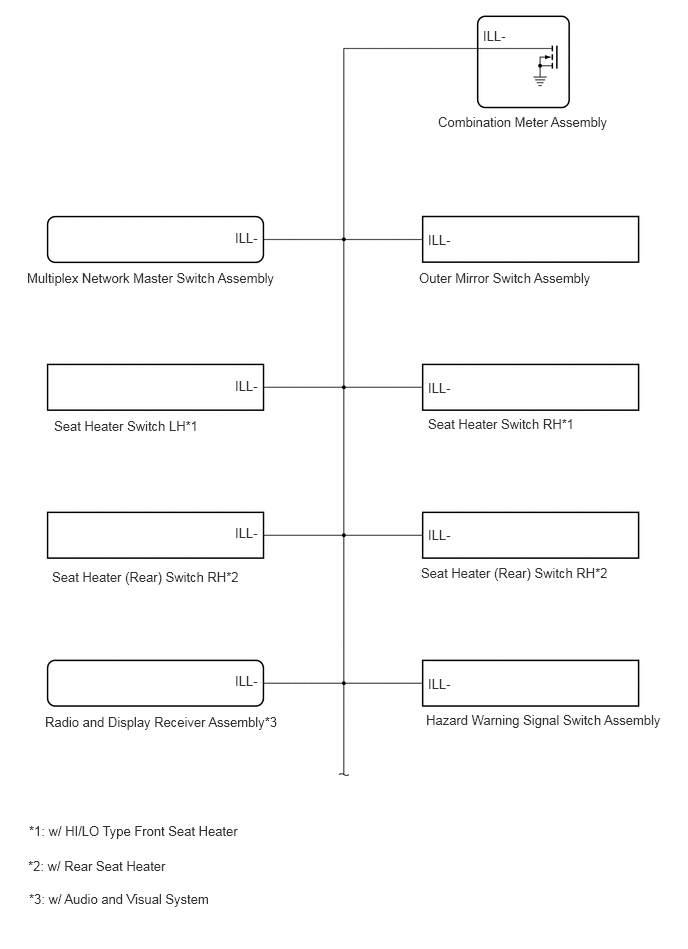

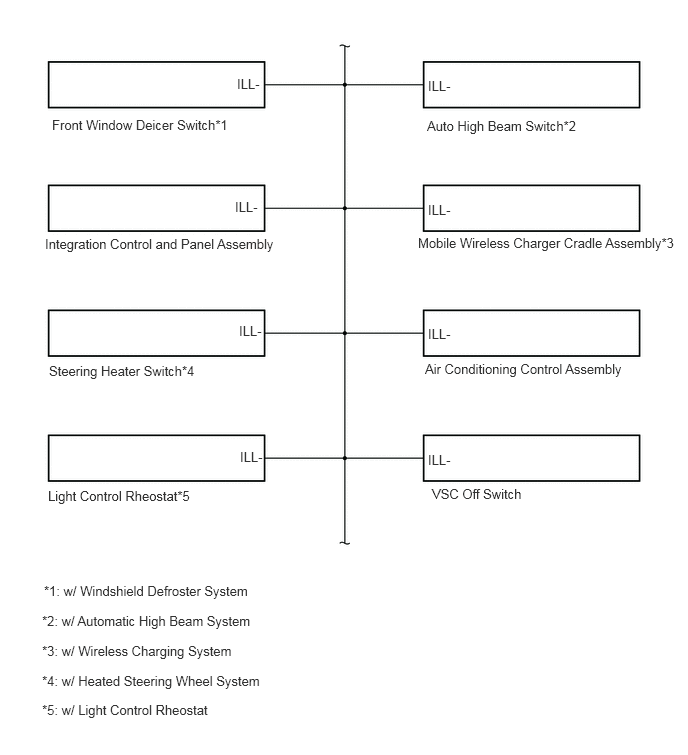

4. Illumination Circuit

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
