Removal [02/2019 - 12/2021]: Procedure

  1. REMOVE REAR WHEEL

    Refer to REMOVAL [11/2018 - ]

  2. REMOVE FRONT FENDER FRONT SPLASH SHIELD LH (for Gasoline Model)

    Refer to PROCEDURE - Step 8 [11/2018 - 10/2019] , or refer to PROCEDURE - Step 8 [10/2019 - 08/2020] , or refer to PROCEDURE - Step 8 [08/2020 - 12/2021]

  3. REMOVE FRONT FENDER FRONT SPLASH SHIELD RH (for Gasoline Model)

    Refer to PROCEDURE - Step 9 [11/2018 - 10/2019] , or refer to PROCEDURE - Step 9 [10/2019 - 08/2020] , or refer to PROCEDURE - Step 9 [08/2020 - 12/2021]

  4. REMOVE NO. 1 ENGINE UNDER COVER (for Gasoline Model)

    Refer to PROCEDURE - Step 10 [11/2018 - 10/2019] , or refer to PROCEDURE - Step 10 [10/2019 - 08/2020] , or refer to PROCEDURE - Step 10 [08/2020 - 12/2021]

  5. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY (for Gasoline Model)

    Refer to PROCEDURE - Step 11 [11/2018 - 10/2019] , or refer to PROCEDURE - Step 11 [10/2019 - 08/2020] , or refer to PROCEDURE - Step 11 [08/2020 - 12/2021]

  6. REMOVE FRONT FLOOR COVER LH (for Gasoline Model LH Side)

    w/ Floor Under Cover:

    Refer to PROCEDURE - Step 13 [11/2018 - 08/2020] , or refer to PROCEDURE - Step 13 [08/2020 - 12/2021]

  7. REMOVE FRONT FLOOR COVER RH (for Gasoline Model RH Side)

    w/ Floor Under Cover:

    Refer to PROCEDURE - Step 15 [11/2018 - 08/2020] , or refer to PROCEDURE - Step 15 [08/2020 - 12/2021]

  8. REMOVE NO. 2 FLOOR UNDER COVER (for Gasoline Model LH Side)

    w/ Floor Under Cover:

    Refer to PROCEDURE - Step 14 [11/2018 - 08/2020] , or refer to PROCEDURE - Step 14 [08/2020 - 12/2021]

  9. REMOVE NO. 1 FLOOR UNDER COVER (for Gasoline Model RH Side)

    w/ Floor Under Cover:

    Refer to PROCEDURE - Step 16 [11/2018 - 08/2020] , or refer to PROCEDURE - Step 16 [08/2020 - 12/2021]

  10. REMOVE LOWER NO. 2 CONTROL ARM COVER (w/ Cover)

    See step  2

  11. SEPARATE NO. 2 PARKING BRAKE WIRE ASSEMBLY

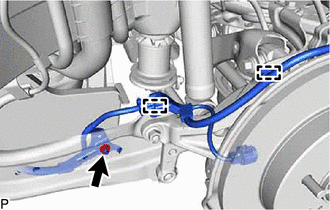

    1. Disengage the 2 clamps.
      GTY858306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the nut and separate the No. 2 parking brake wire assembly from the rear trailing arm assembly.
  12. REMOVE REAR TRAILING ARM ASSEMBLY

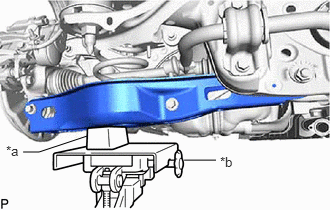

    1. Using a transmission jack and a wooden block, support the rear No. 2 suspension arm assembly.
      NOTE:
      • When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.
      • Make sure to perform this operation with the vehicle kept as low as possible.
      GTY906250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wooden Block
      *b Transmission Jack

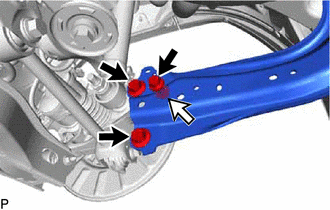

    2. GTY858299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 3 bolts, nut and separate the rear trailing arm assembly from the rear axle carrier sub-assembly.

    3. Remove the 2 bolts and rear trailing arm assembly.

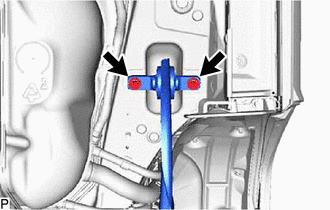

      GTY858298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
